4–34 Creating the Sample Application
Publication 2711-6.2

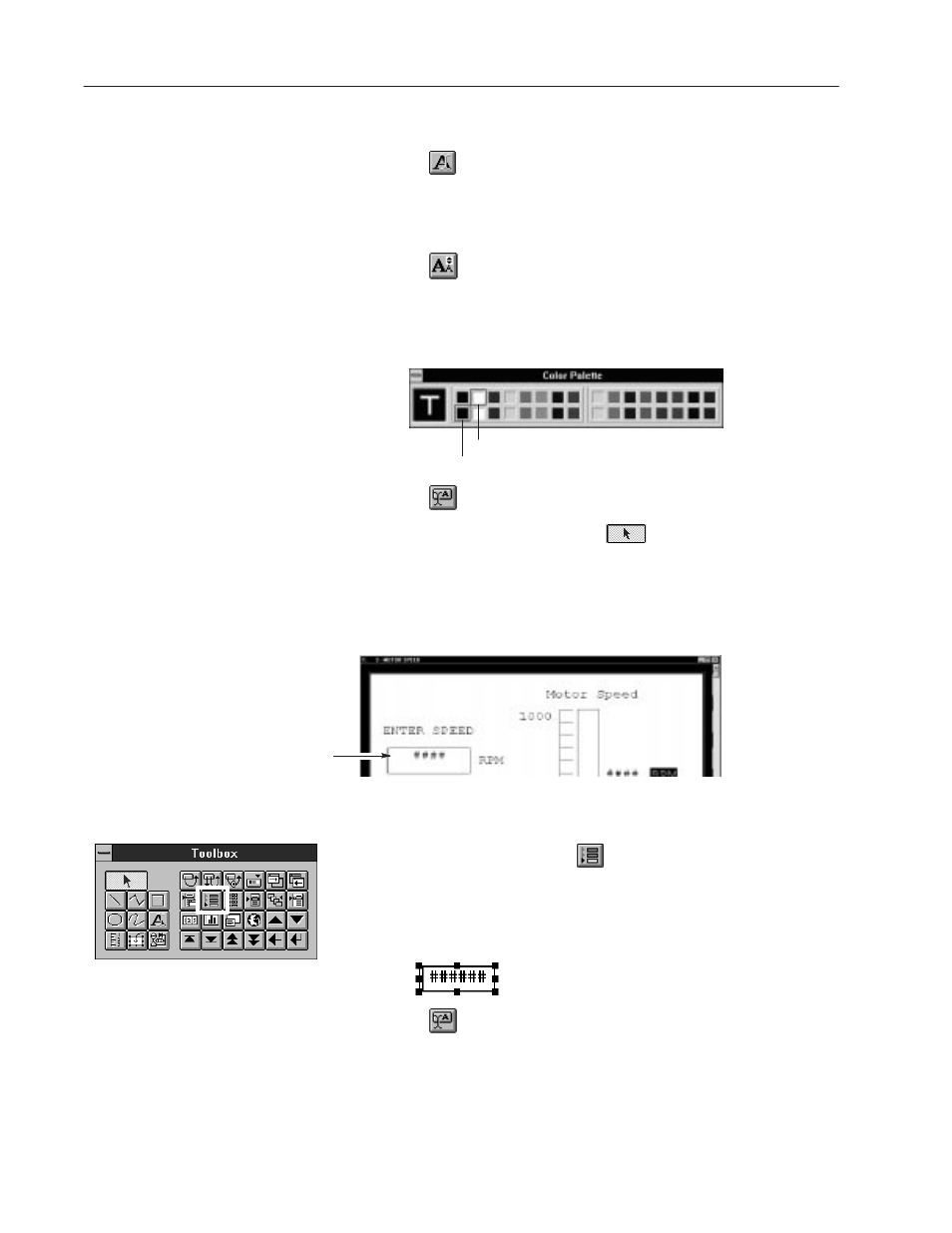

To create the Motor Speed heading above the bar graph:
1. Click in the toolbox.
2. Position pointer (+) above bar graph and drag to size text block.
3. Type Motor Speed in the Text box.
4. Click on the format bar and choose 16x24. Don’t change the
text size for PV550 applications.
•
Select White from the top row of the color palette.
•
Select Black from the bottom row of the color palette.
White is the Foreground Color
Black is the Background Color
5. Click to exit inner text mode.
6. Click the right mouse button or to exit text mode.
7. Resize the text object if necessary.
Creating the Speed Numeric Entry Object
Speed Numeric Entry Object
To create the Speed numeric entry object:
1. Click the Cursor Point tool in the toolbox.
2. Position the pointer (+), hold down the left mouse button and
drag the pointer to size the object.
The object is created with 6 numeric placeholders.
3. Click to enter inner text mode.
Creating the
Motor Speed Screen
For Color
