4–35 Creating the Sample Application
Publication 2711-6.2

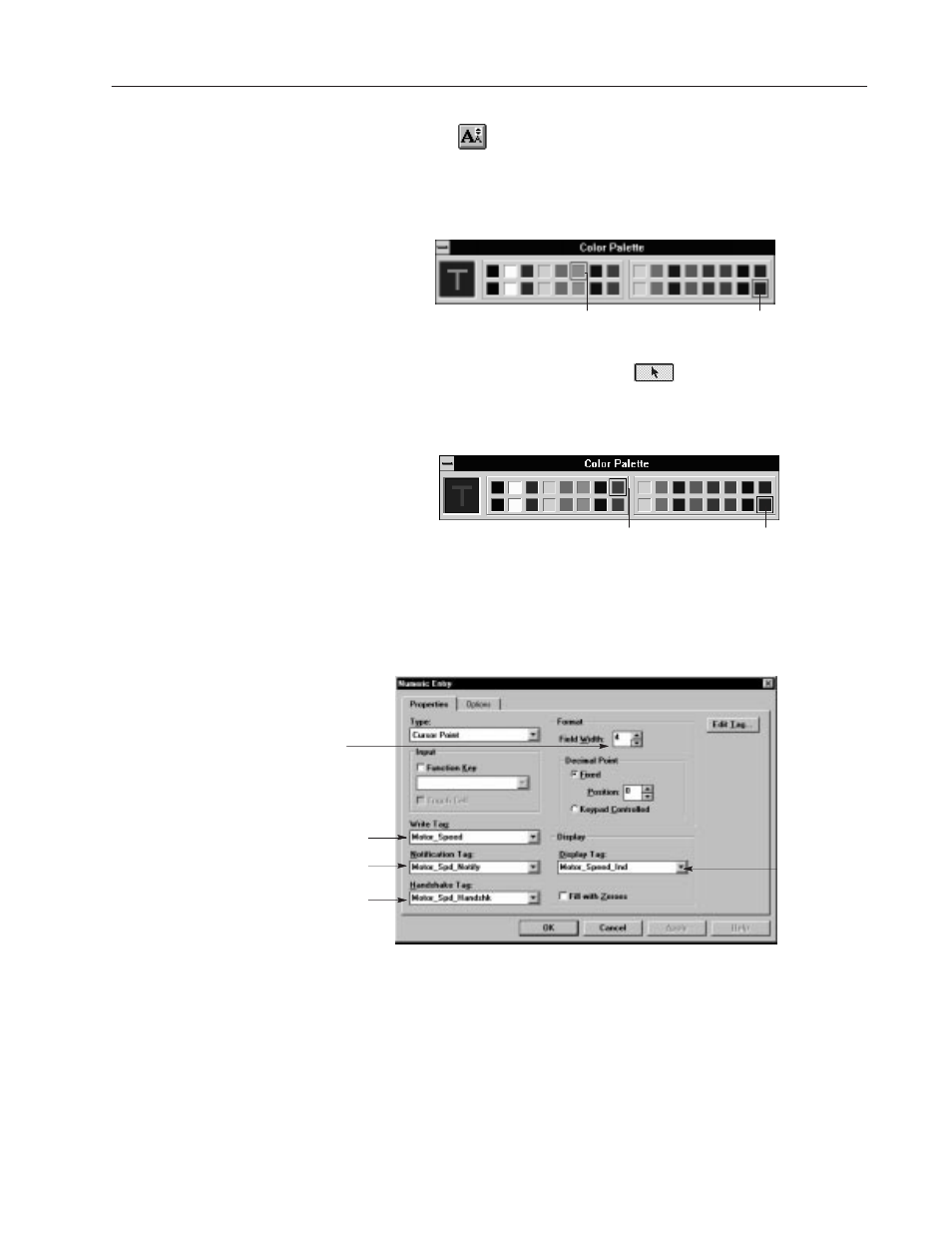

4. Click and choose 16x24. Don’t change the text size for
PV550 applications.
•
Select Light Cyan from top row of the color palette.
•
Select Magenta from the bottom row of the color palette.
Light Cyan is the Foreground Color Magenta is the Background Color
5. Exit inner text mode.
6. Click the right mouse button or to exit cursor point mode.
•
Select Light Magenta from the top row of the color palette.
•
Select Magenta from the bottom row of the color palette.
Light Magenta is the Foreground Color Magenta is the Background Color
To set the properties of the Speed numeric entry object:
1. Double-click the numeric entry object to open its dialog.
2. Set the properties as shown below.
Type
Motor_Speed_Ind
Select 4
Type Motor_Speed
Type Motor_Spd_Notify (for Remote I/O only)
Type Motor_Spd_Handshk (for Remote I/O only)
3. Click OK to close the dialog.
The object now has 4 numeric placeholders ####.
For Color
For Color
