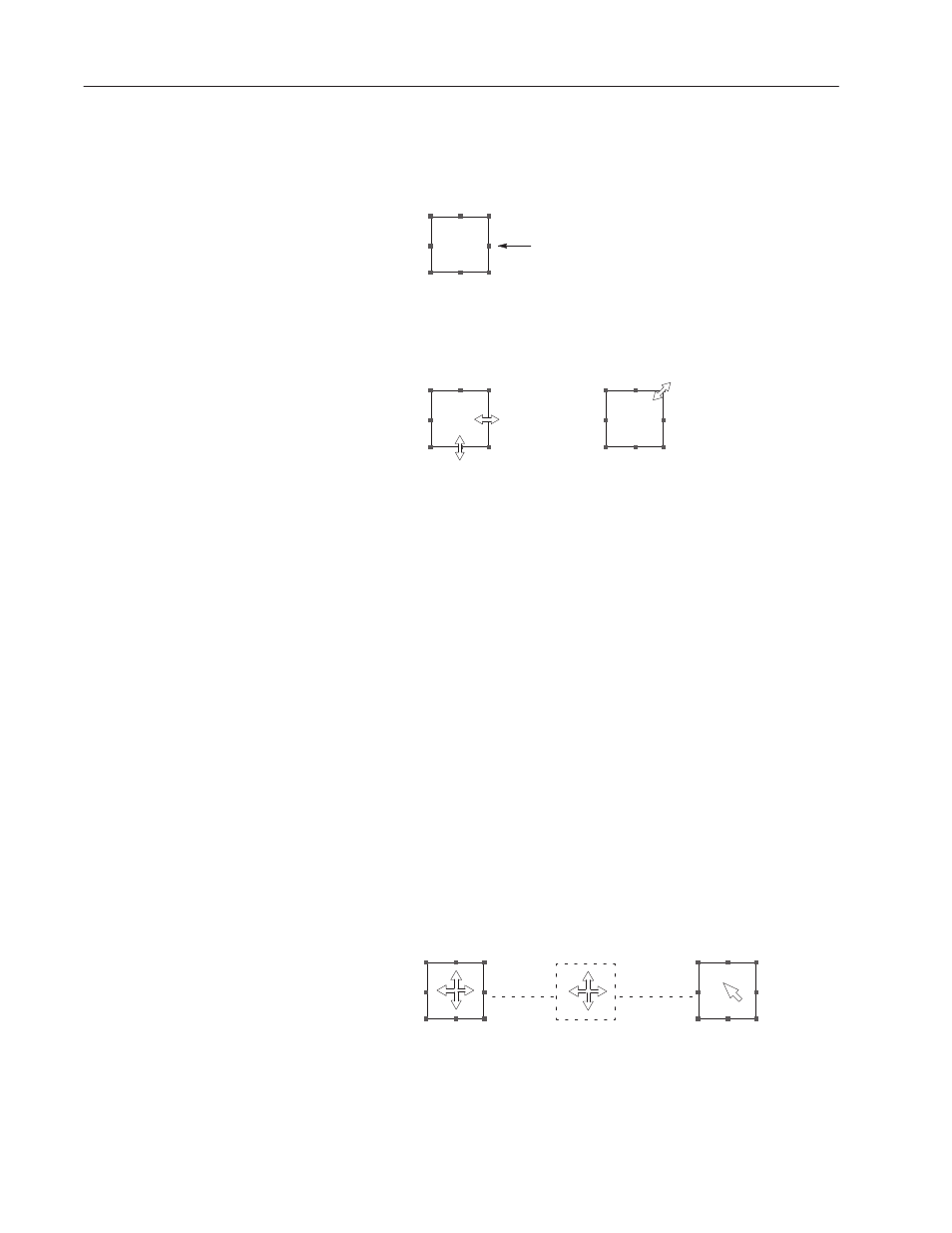

To size an object:
1. Select the object by clicking anywhere on the object.
Handles appear on the object.
Handle
2. Position the pointer over one of the handles.
The pointer changes to show the direction you can size the object.
Size Horizontally
Size Vertically
Size Diagonally
3. Press the left mouse button and drag the handle.
The object stretches from the anchor point to the position of the
pointer, expanding and contracting as you move the mouse.
The anchor point is the handle opposite the handle you choose. It
does not move when objects are sized.
4. Release the mouse button when the object is the right size.
Objects with inner graphics can’t be sized smaller than the graphic.
You might have to move or delete the inner graphic to size the object
appropriately.
To move an object:
1. Move the pointer anywhere inside the object.
2. Hold down the left mouse button and drag the object to its new
location. The pointer changes to show that you are moving the
object. An outline appears as you drag the object.
Old Location New Location New Location
3. Release the mouse button.
Sizing Objects
"
Moving Objects
