3–6 Overview of Sample Application
Publication 2711-6.2
The sample application has a collection of read/write tags that define
how objects interact with SLC 500 or PLC controller addresses. The
following table defines the attributes of each tag.
Tag Attributes Description
Tag Name Unique name identifying tag address
Data Type Bit, 4BCD, Unsigned/Signed Integer, Bit Array,
Character Array, Float
Array Size Array size (length) of bit array
Description General description of tag
Node Name Name of controller associated with tag
Tag Address Specifies data table word or bit
Initial Value Value stored at tag address on powerup
Update Frequency Rate at which tag address value is updated
Scaling 1 Scale and offset scale values
Data Entry Limits 1 High and low limits of data stored at tag address
1 Fields display only if data type is 4BCD, Signed/Unsigned Integer, or IEEE Float.
Tags used by the DH-485 or DH+ application are stored in a tag
database that is referenced by the project name GS. The GS project
has 9 tags.
Tags used by the Remote I/O application are stored in a database
referenced by the project GSRIO. The GSRIO project has 12 tags.

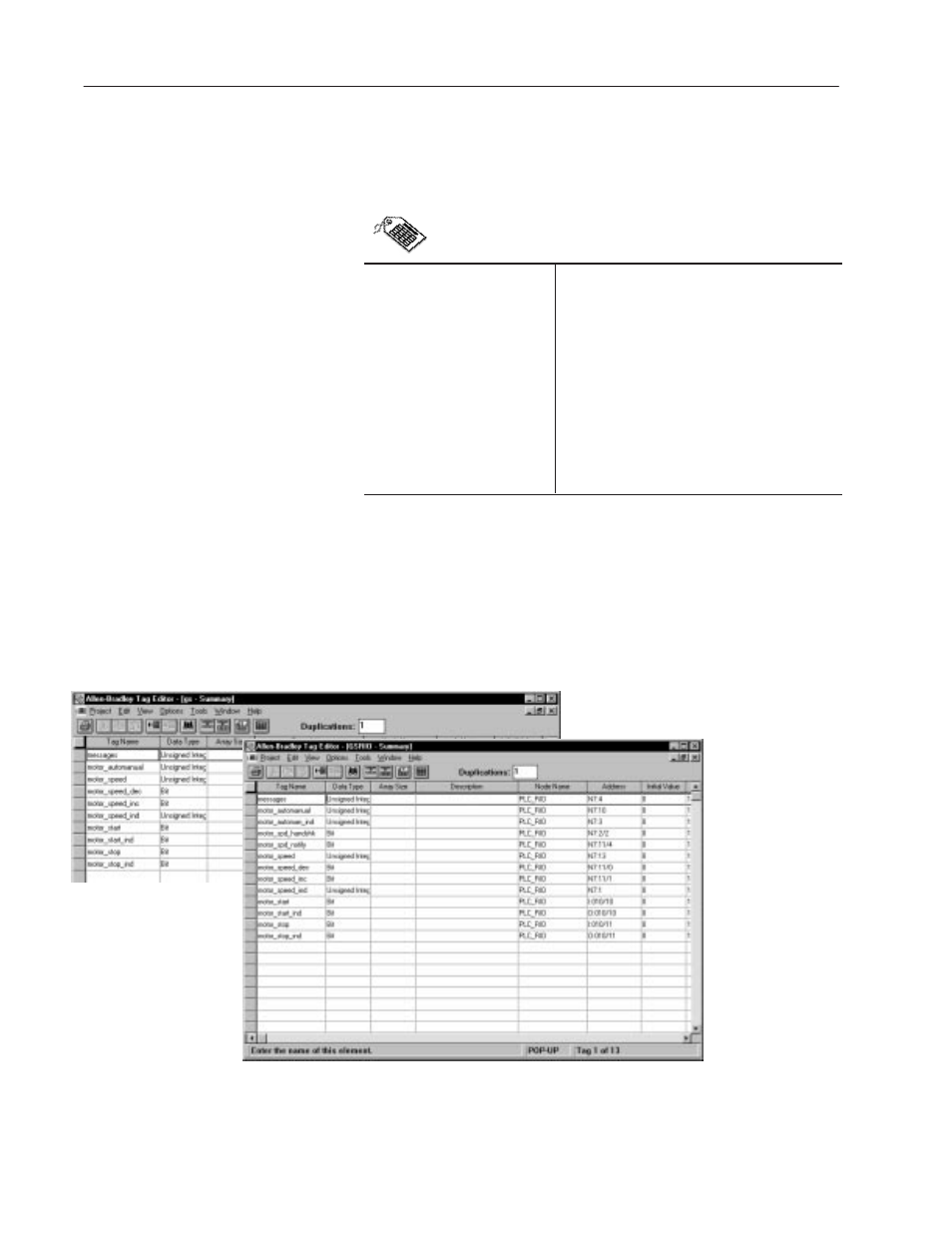

Tags are created using the Tag Editor.
Objects that don’t read or write to a controller address such as screen
selector buttons and background text do not require a tag.
Application Tags
