Hardware monitor – Rockwell Automation 6189V-xxxx Non-display Industrial Computers User Manual User Manual
Page 67

Rockwell Automation Publication 6177R-UM002D-EN-P - October 2014
67
UEFI Set-up Utility
Chapter 5

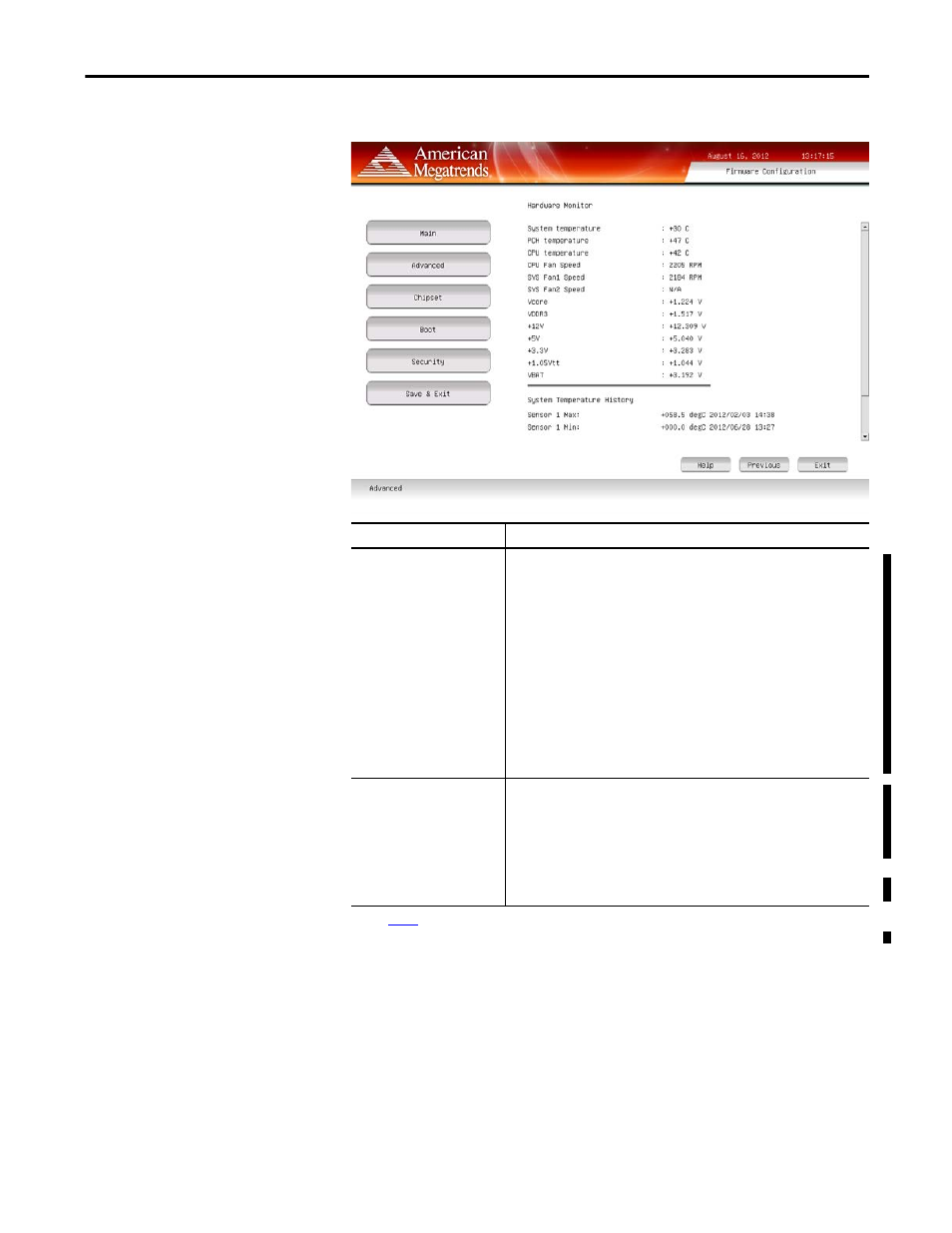

Hardware Monitor
Parameter
(1)
(1) See
for an explanation of common buttons near the bottom of screen.
Description
Hardware Monitor
System temperature
PCH temperature
CPU temperature
SYS Fan1 Speed
SYS Fan2 Speed
(2)
Vcore
VDDR3
+12V
+5V
+3.3V
+1.05Vtt
VBAT
(2) Applies only to rack-mounted computers.
Displays the current readings for temperatures (°C), fan speeds, and core voltages
of various hardware components.
All values are read-only.
System Temperature History
Sensor 1 Max
Sensor 1 Min
Sensor 2 Max
Sensor 2 Min
Sensor 3 Max
Sensor 3 Min
Displays the minimum and maximum temperatures (°C) for applicable sensors
over a 24-hour time period (time stamp is 24-hour clock).
• Sensor 1 is near the front intake fan.
• Sensor 2 is near the CPU.
• Sensor 3 is near the PCH.
All values are read-only.
