Replace or add memory modules – Rockwell Automation 6189V-xxxx Non-display Industrial Computers User Manual User Manual
Page 42

42
Rockwell Automation Publication 6177R-UM002D-EN-P - October 2014
Chapter 4
Component Replacement
6. Return the HDD assembly into its bay (G).
7. Tighten the two captive thumbscrews of the drive assembly to secure it to
the computer (H).
8. Follow the steps for
.
Replace or Add
Memory Modules
The motherboard of the 750R and 1450R computers has four DIMM slots that
support up to 32 GB maximum system memory.

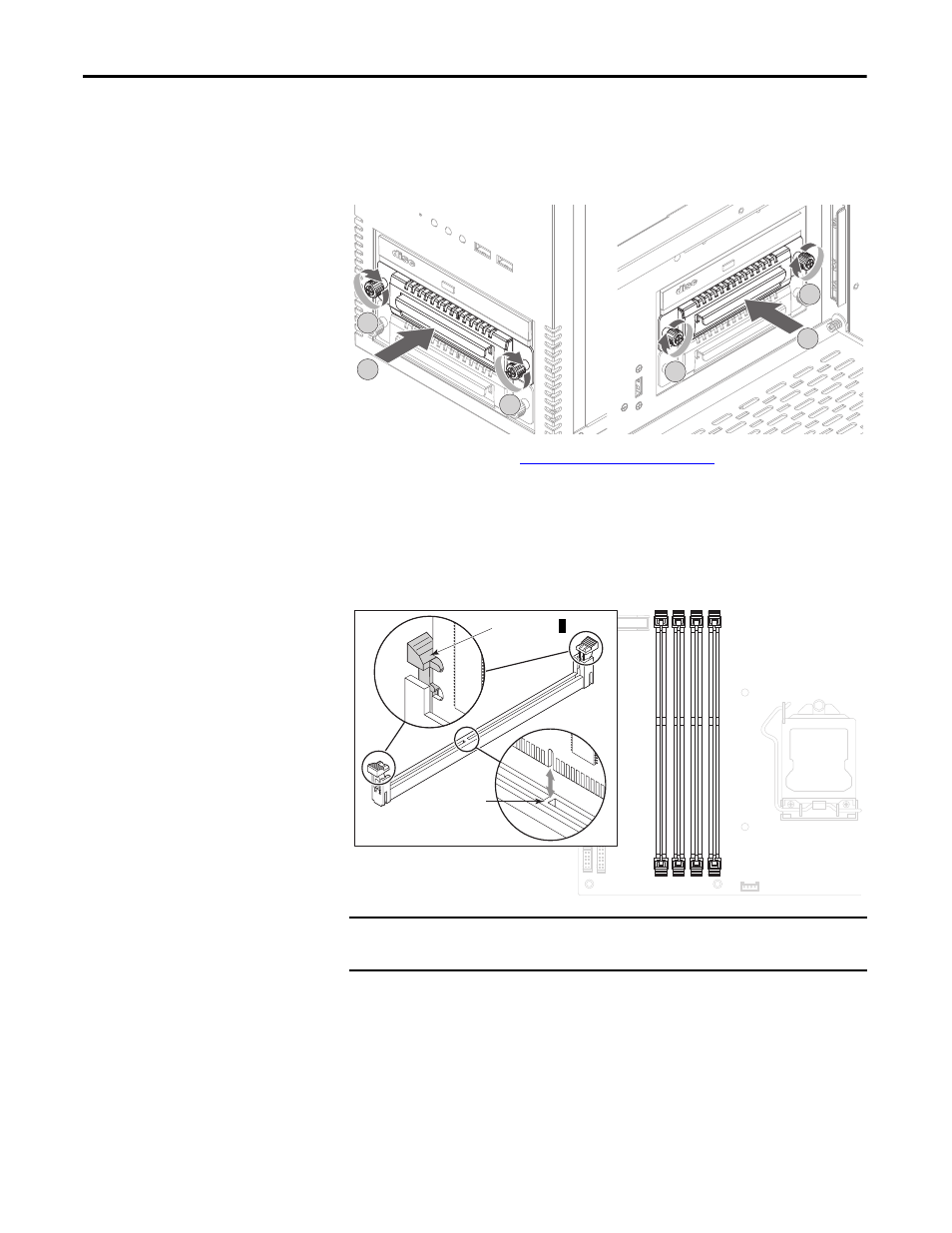

Figure 11 - Memory Module Slots and Module Alignment
H
G
H
H
G
H
750R Computer
1450R Computer
IMPORTANT
When you install memory in pairs, install modules in slots 1 and 3 or slots 2
and 4 for optimal performance.
4
Lock Lever
Keyed Surface
of DIMM Slot
1
2
3
