Chapter 2
Installation
Install the Computer
The computers support the following mounting options:
• Machine or wall mount (for 750R models)
• Rack mount (for 1450R models)
Mount the 750R Computer
You can mount the 750R computer on any flat surface, such as a shelf inside a
machine or against a wall, by using mounting brackets. Holes are provided on
both sides of the 750R computer for side mounting installation.
Follow these steps to mount the 750R computer.
1. Verify that the mounting location provides adequate space for cables and
airflow.
Mounting Clearance Requirements on page 22
for recommended
allowances.
2. Decide where to locate the mounting brackets (the bottom side for an
upright installation or the side for a wall installation).
3. Attach each mounting bracket to the computer with four screws.
Torque the screws to 1.3 N•m (12.1 lb•in).
TIP
For ease of installation, use two or more people to install the computer.

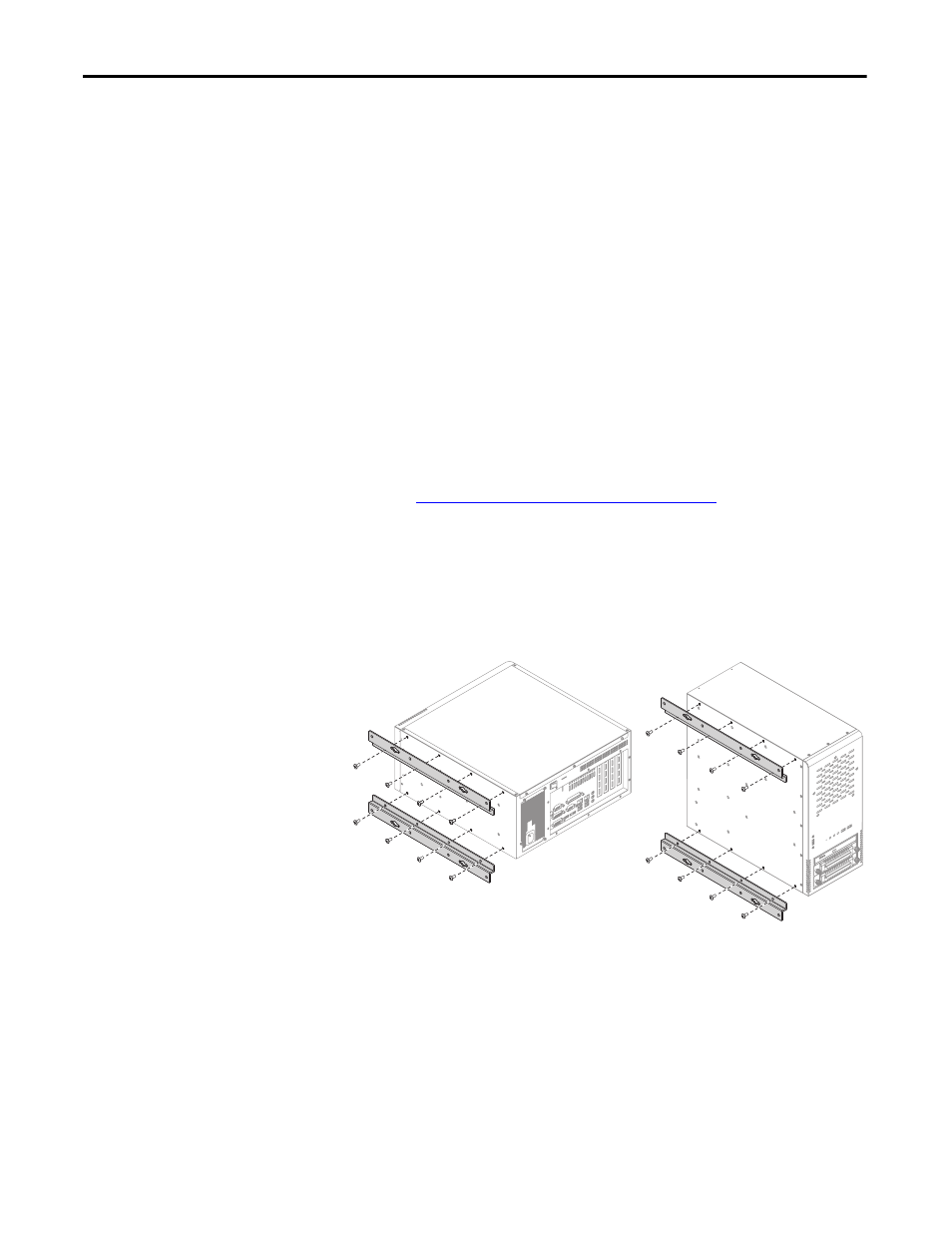

Bottom Mounting Brackets
Side Mounting Brackets
