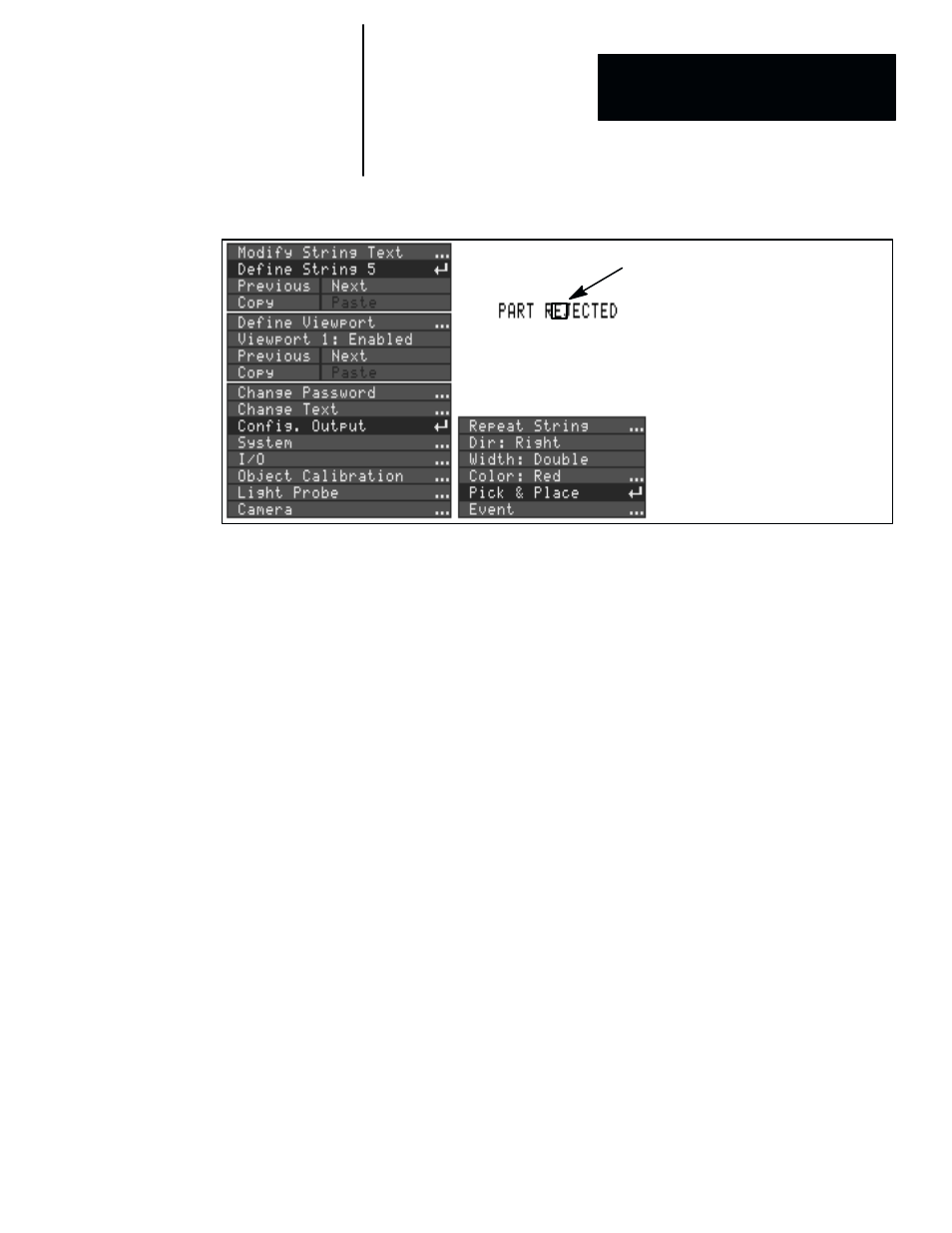

Figure 7.20 Placing the string

Handle appears when
Pick & Place function is activated

To activate the

Pick & Place

function:

•

Pick the

Pick & Place

box on the

Define String

menu; a small

rectangular “handle” appears in the middle of the string.

•

Pick and “drag” the string handle to reposition the string (refer to the pick
& place procedures in the Color CVIM User’s Manual for more
information).

Note: When using the

Pick & Place

item for a string within a

Tool

viewport, you can position the string anywhere on the screen. However,
remember that

Tool

viewport strings are displayed beneath

Text

and

Graph

viewports, and beneath base Color CVIM runtime menus and

displays; if a

Tool

string is defined to be displayed in the same location

and on the same display page as a

Text

Graph

viewport or a base

Color CVIM runtime display, the

Tool

string will not appear in the

display.
