Rockwell Automation 5370-CUPK Color CVIM USER-PAK Option User Manual
Page 20
Chapter 3
Installation
3 – 2

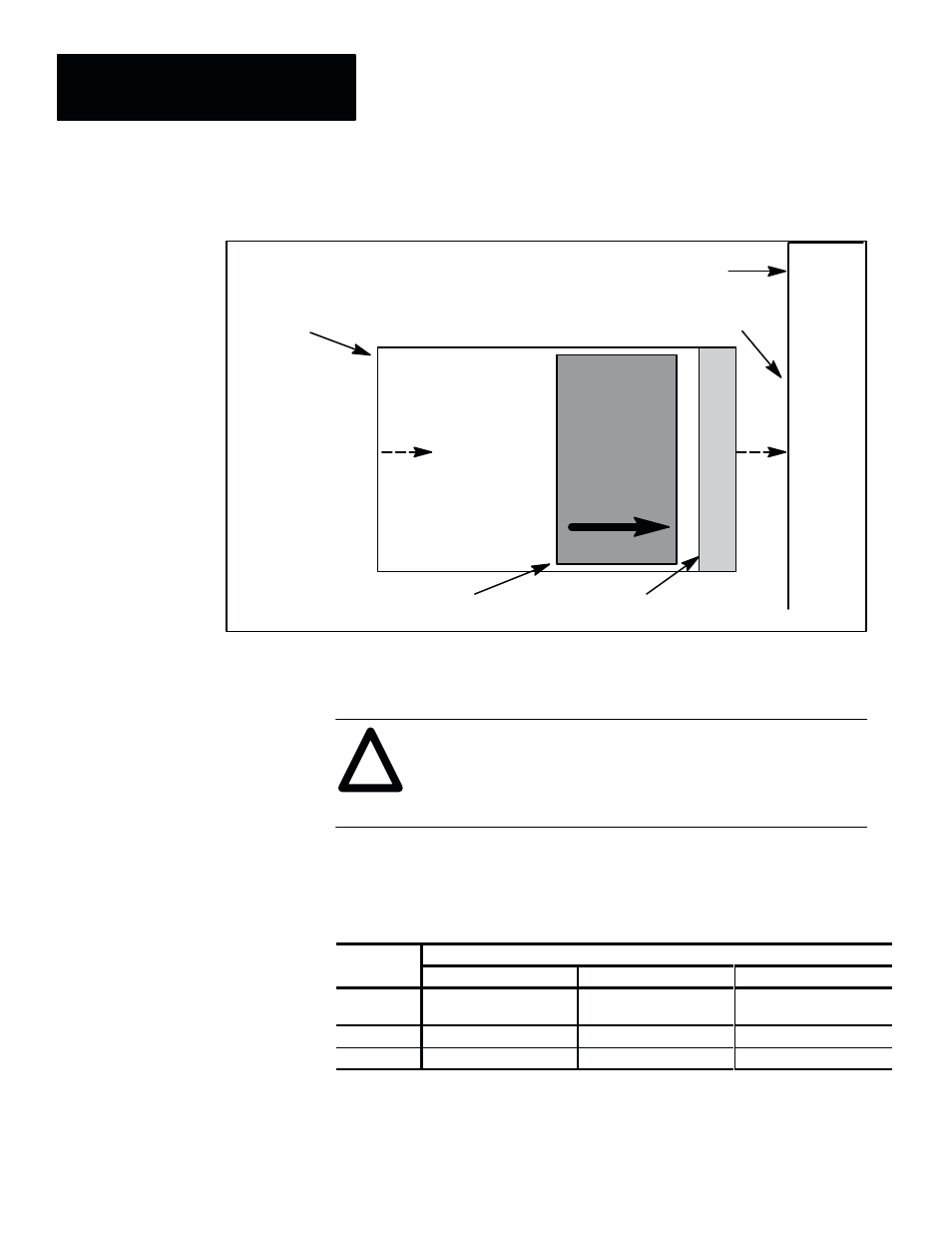

Figure 3.1 Inserting the USER-PAK Installation / Key card
ЗЗЗЗ
ЗЗЗЗ
ЗЗЗЗ
ЗЗЗЗ
ЗЗЗЗ
ЗЗЗЗ
ЗЗЗЗ
ЗЗЗЗ
ЗЗЗЗ
ЗЗЗЗ
ЗЗЗЗ
ЗЗЗЗ
ЗЗЗЗ
ЗЗЗЗ
ЗЗЗЗ
ЗЗЗЗ
USER-PAK
Installation/Key
card
Color CVIM
module face
Archive
Memory slot
Card Label
Metal Strip
•
Apply the power to the Color CVIM module; this starts the loading
sequence.
Do not remove power to the Color CVIM module during
loading of the USER-PAK option. Doing so may damage the
Color CVIM module.
ATTENTION:
!
The top three LEDs on the Color CVIM module indicate the progress of
the three-phase loading process, as follows:
USER-PAK Loading Phase
LEDs
1
2
3
Pass/Fail
Red-to-yellow-
to-green
Green
Red-to-yellow-
to-green
Trigger 1
Green
Green
Off
Trigger 2
Off
Green
Green
The loading process requires about 45 seconds, with each phase taking
about 15 seconds. When the loading process is complete, the Color
CVIM module begins its normal powerup sequence.
