Chapter 5

Modifying the Color CVIM Menus

5 – 16

•

Edit the entry to read

and pick the

Ret

key. The

Status:

field

displays the message

Dictionary Entry Changed.

Having changed the dictionary entry, when you next display the

Envir/Cam

→

System

→

Units

menu, the

item will be changed to read

Note: The selected

Units

entry also appears in the

Learn

box on the

Gage

menu, when you select

Learn

for a

Gage

set to

Linear

operation

(see Figure 5.12, page 5 – 16).

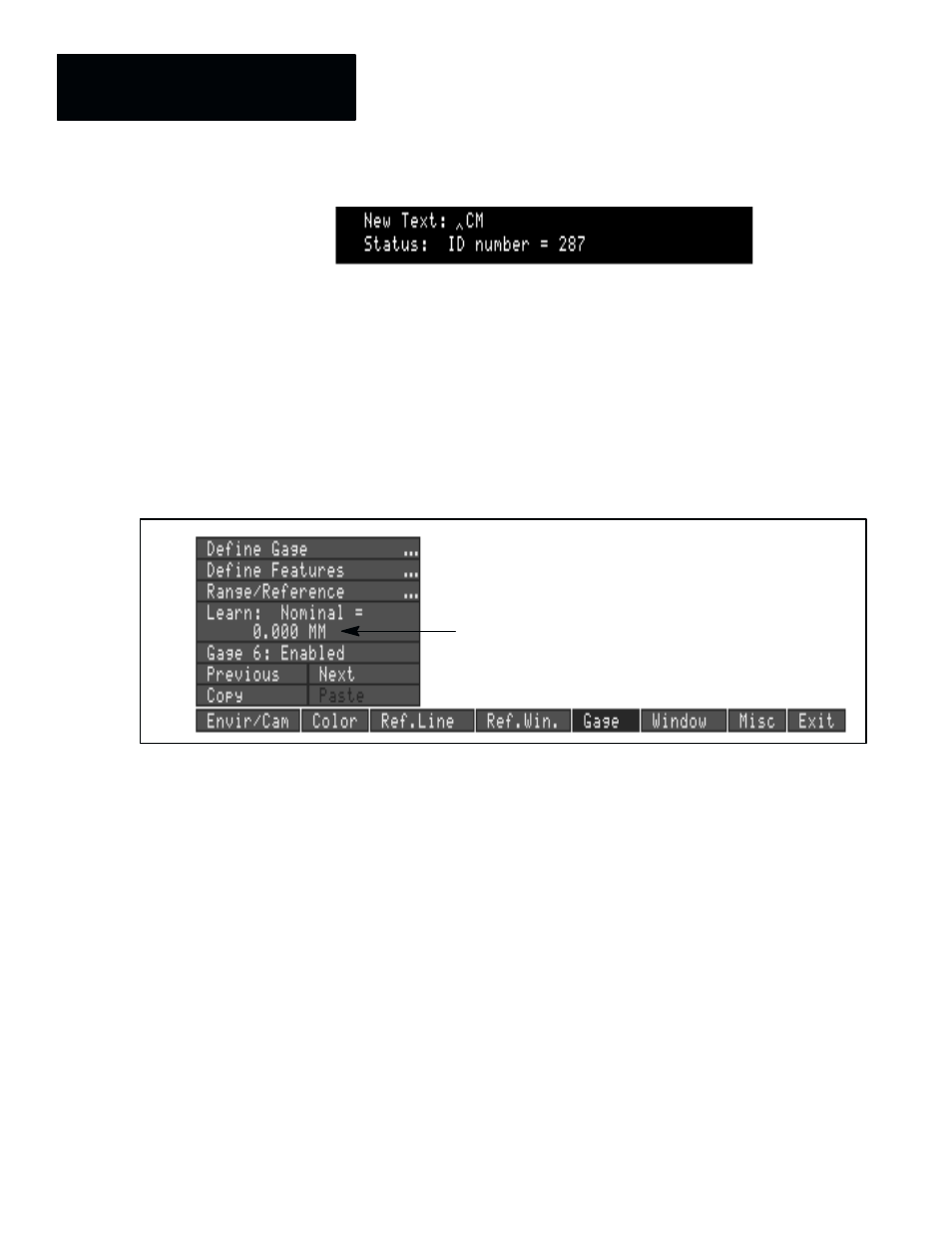

Figure 5.12 Example: Units modification appears also in Learn box

(or other selected

unit) also appears
here

By default, the color CVIM Color menu describes each of 32 available colors
with a unique number (1 through 32). Modification of these color
descriptions can make your system easier to use. While it is possible to use
the procedure described above to modify the default color names to best
reflect your own installation, the Color CVIM USER–PAK offers an easier
way to perform this commonly required change.

Unlike the text editing tools described above, users at any security level can
use the following procedure to rename a color.

First, select

Color

from the Main Menu. Move through the list of colors by

selecting

until the desired color name appears. If the color

is disabled, enable it by selecting it with the light pen.

Note: The first color modified directly from the

Color

menu must be

enabled in order to gain access to the

Display Options

→

Modify Color

Name

menu choices.

Modifying Color Names
