Modifying the Color CVIM Menus

5 – 9

Dictionary ID Search

To use the

Dictionary ID

method for accessing an entry to modify, follow

this general procedure:

•

First, pick the

Dictionary ID

box on the

Search Method

menu to access

the ID entry keyboard. The keyboard’s display area includes two fields,

Dictionary ID:

and

Status:

•

Enter the dictionary ID number of the entry you want to edit. Your entry
appears in the

Dictionary ID:

field in the keyboard display (see

Figure 5.6).

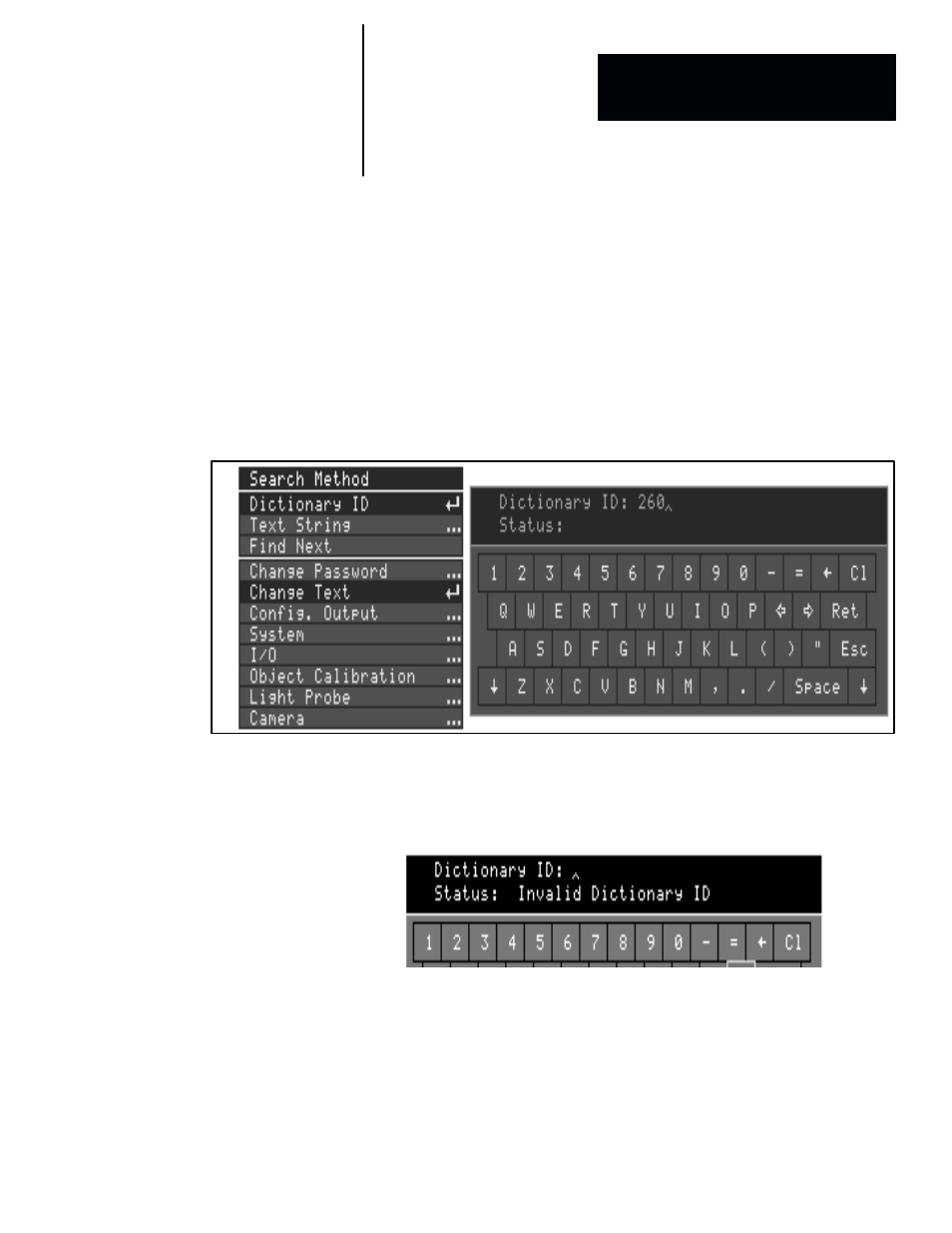

Figure 5.6 Accessing the

Dictionary ID

search method

•

Pick the

Ret

key. One of two results can occur:

(1) If the dictionary ID number you entered is not defined, the

Status:

field returns the message

Invalid Dictionary ID.

If this happens, try

entering a different dictionary ID number.

(2) If the dictionary ID number you entered is defined, the text of that
dictionary entry appears in the

New Text:

field now located over the

keyboard. The dictionary ID number of the entry is listed in the

Status:

field of the keyboard display:
