Publication 2098-IN003E-EN-P — April 2004
Connecting Your Ultra3000 3-11
Connecting Cable Shields at the Drive
All motor power cable shields require attachment to the clamp as
shown in the figures below.

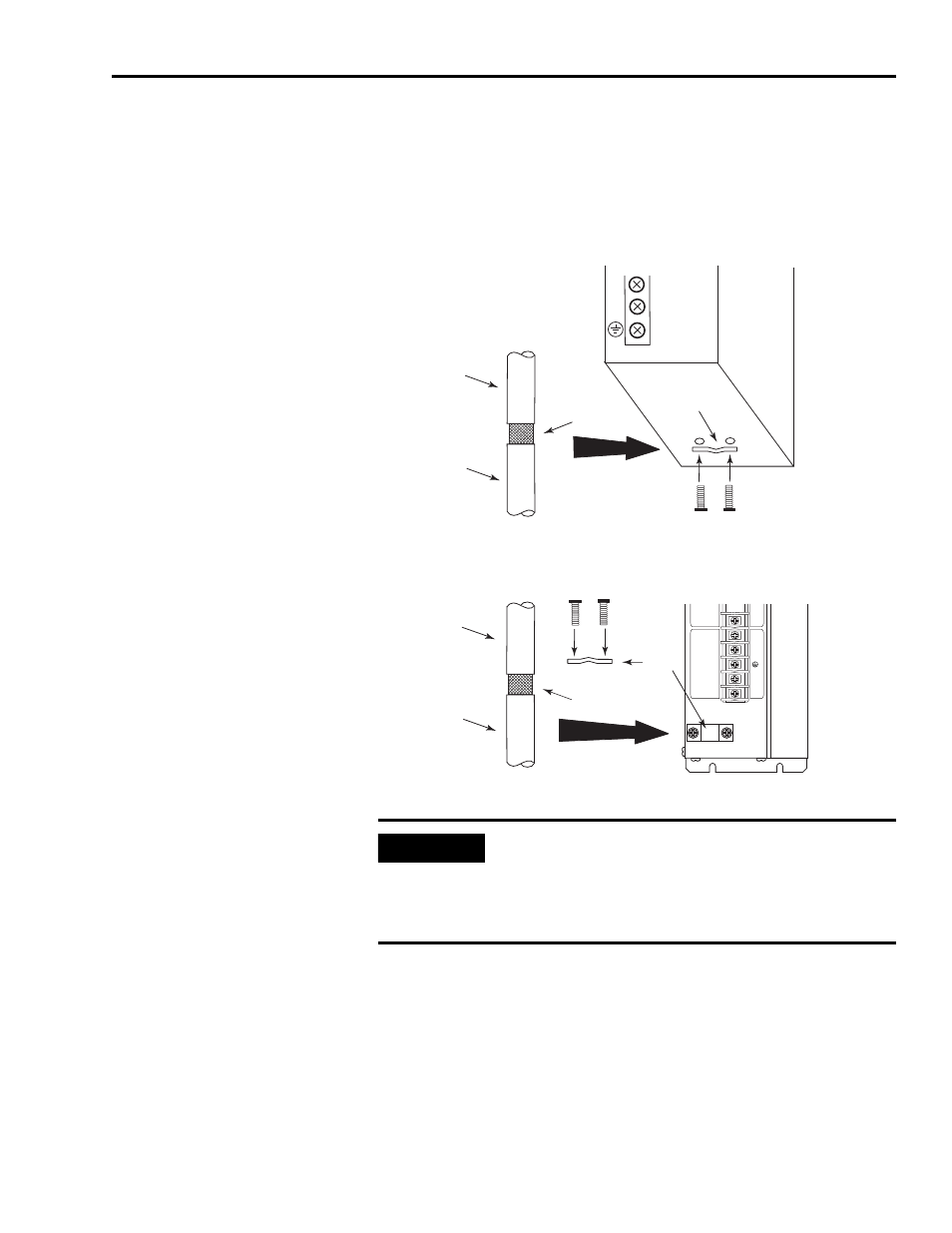

Figure 3.11
Motor Power Cable Shield Connection (bottom of drive)
Figure 3.12
Motor Power Cable Shield Connection (front of drive)
V
W
Ultra3000
Motor cable jacket
Clamp screws
Shield
Clamp
Motor cable jacket
+
-
L1
L2/N
L1
AUX
L2/N
AUX
DC Bus
100-240 VAC
50/60 Hz
Ultra3000 Motor cable jacket
Clamp screws
Shield
Clamp
Motor cable jacket
IMPORTANT
The MP-Series Food Grade motors have shielded
brake wires included in the motor power cable
(2090-XXNPMF-xxSxx). Fold the brake wire shields
back under the drive clamp before making
connections to the brake circuit.
