Incremental encoder output – Rockwell Automation 2090 Ultra3000 Installation Manual User Manual

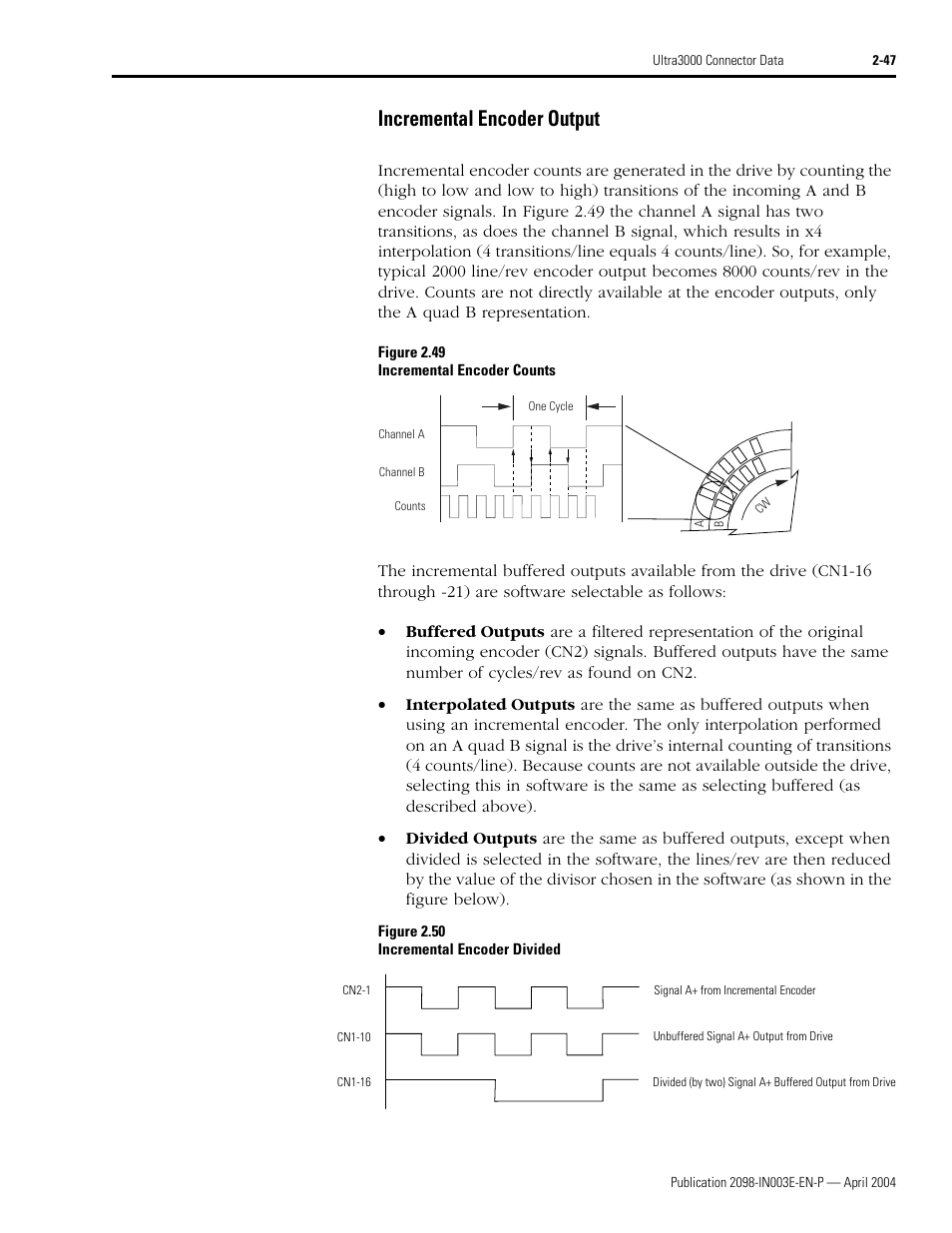

Page 89
