Rockwell Automation 1790P-T4T0 CompactBlock LDX I/O Thermocouple Modules User Manual
Page 91
Publication 1790-UM003A-EN-P
Module Configuration for PROFIBUS E-3
You can add modules to the network by:
1. Selecting slaves from the PROFIBUS Device pane
2. Dragging and dropping them to the network pane
Or, if online, by performing a search for slaves

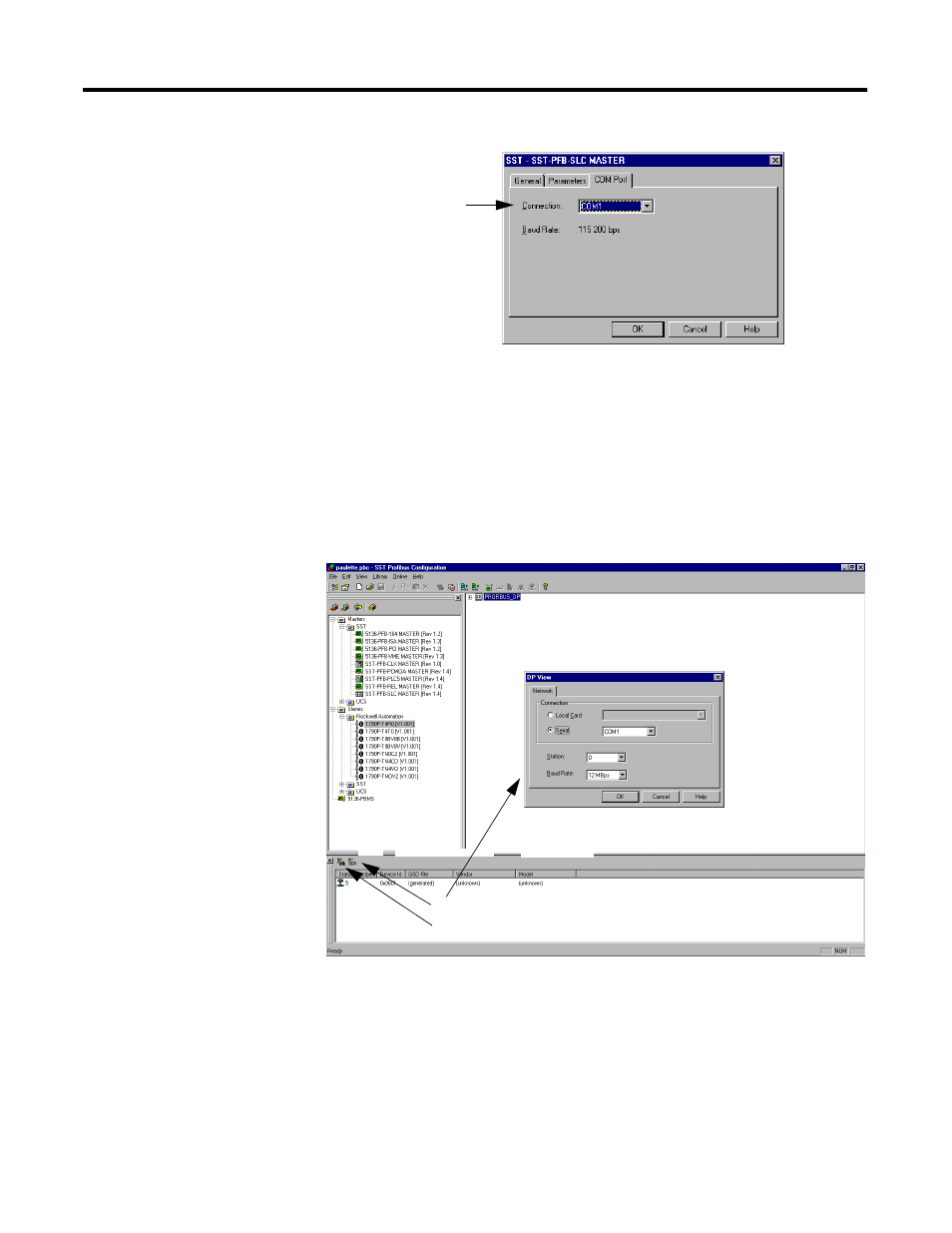

See the following screens for an outline of this procedure.
Choose the
Master
communication
parameters
First, configure the network search properties.
Second, search for slave modules.
