Configuration Using the RSLogix 5000 Generic Profile for CompactLogix Controllers C-3
This screen narrows your search for I/O modules to configure into your
system. Click the OK button and the following default Generic Profile screen
appears:

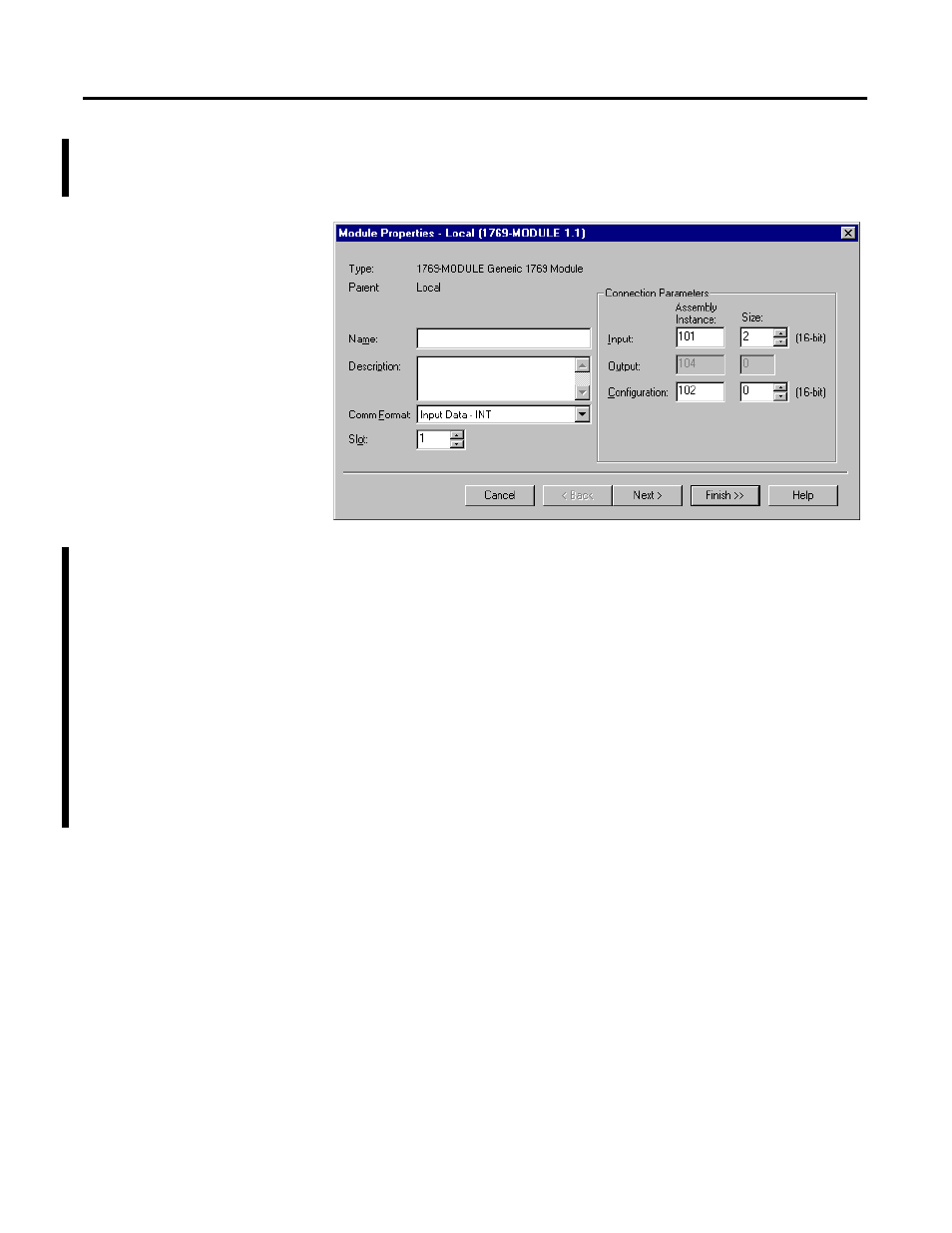

This is the default Generic Profile screen. The first area to fill in for the
Generic Profile screen is the name. This helps to easily identify the module
type configured on your local Compact Bus. The “Description” field is
optional and may be used to provide more details concerning this I/O module
in your application.
The next parameter to configure is the “Comm Format”. Click the down
arrow for this parameter to reveal the choices. For the 1769-OF8C and -OF8V
modules, “Data – INT” is used. “Input Data –INT” is used for the 1769-IF8
module.
The slot number must be selected next, even though it begins with the first
available slot number, 1, and increments automatically for each subsequent
Generic Profile you configure.
