General status bits (s0 through s3), Over-range flag bits (o0 through o3), Under-range flag bits (u0 through u3) – Rockwell Automation 1769-OF2 Compact I/O Analog Modules User Manual

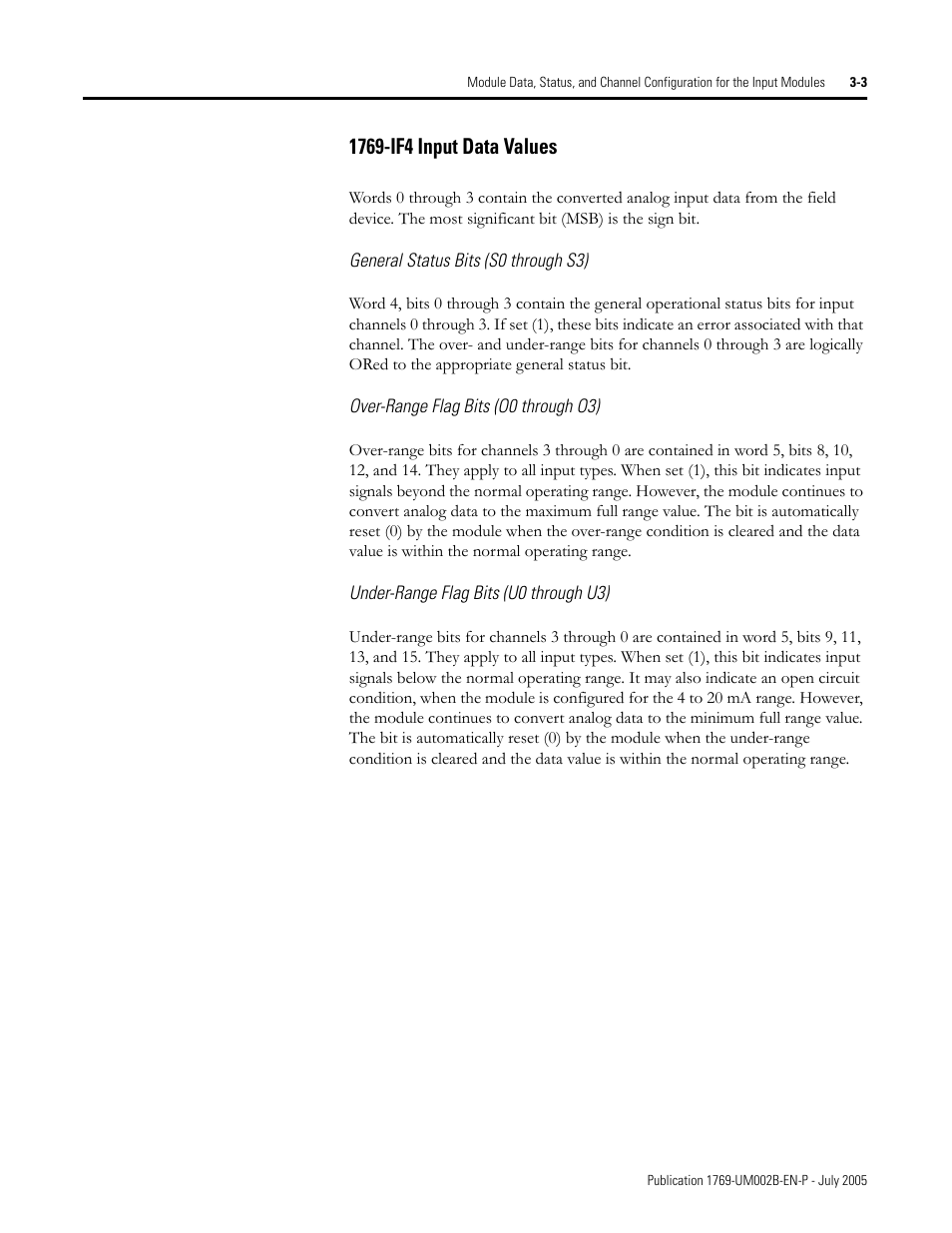

Page 53: 1769-if4 input data values -3
