7-10 Lesson 5

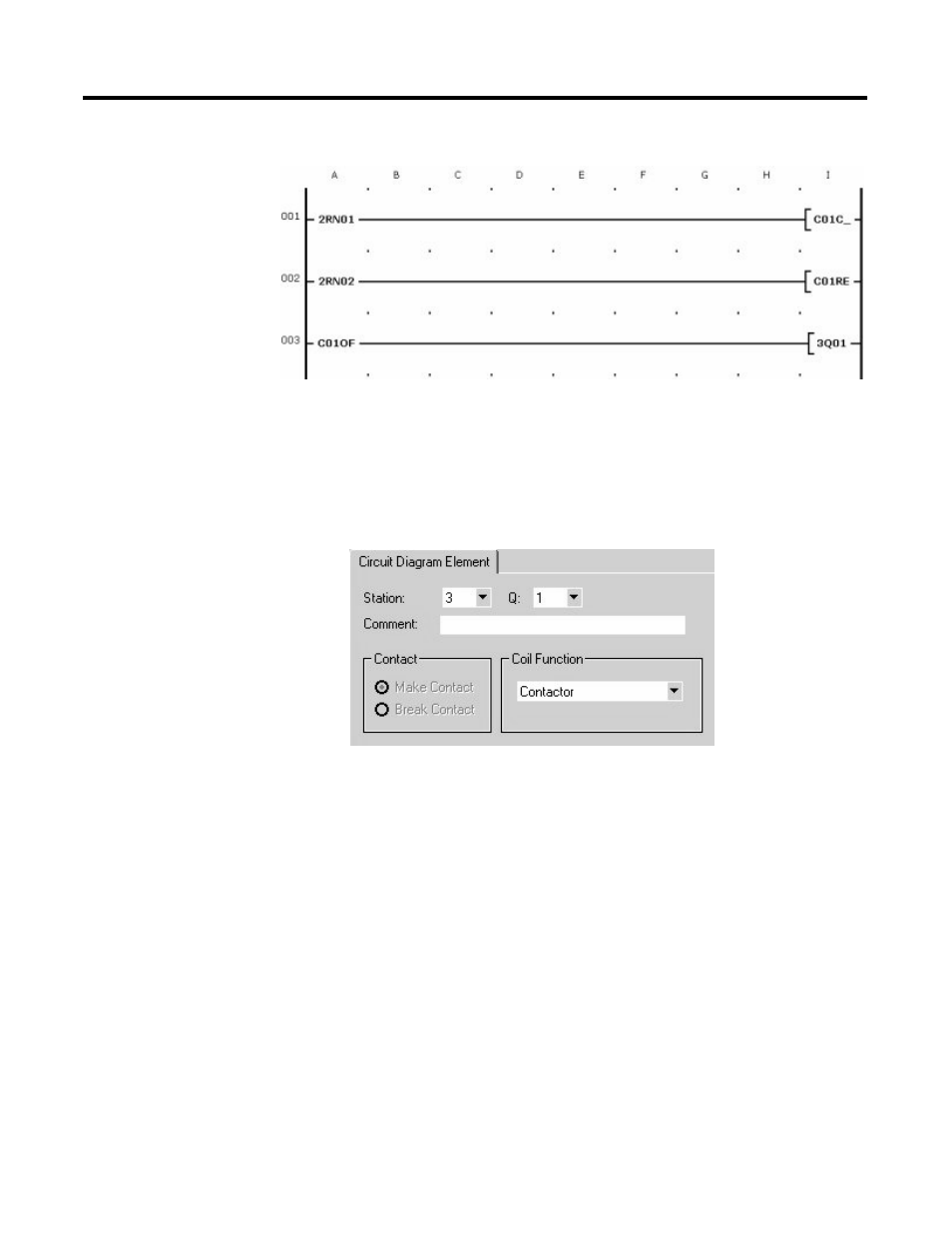

Complete circuit diagram of the master.
To address the output of the input/output module (Pico-Link ID 3), rather
than the local output Q1 of the master, we have to assign the output Q1 with
Pico-Link ID 3.
Properties of output 3Q1.
That's it! The programs have been written and just have to be downloaded to
the devices.
You can use the list box in the standard toolbar to quickly change the Circuit
Diagram View in this project from one device to another, switching, for
example, between the circuit diagram of device 1 to device 3. The device
change is carried out by selecting the appropriate Pico-Link ID in the list box.
Pico-Link Configuration
and Communication To download the programs we have created, we must first prepare the
hardware. To do this, we need three Pico GFX-70 devices that we connect up
using the Pico-Link cable. We must also provide the first and last device with
the bus terminating resistor.
