4-6 Lesson 3
6. Re-establish an online connection to the device (menu:
Communication, Online).
7. Once the connection has been established successfully, you can
then transfer the circuit diagram into PicoSoft via
Communication, Program, Upload.
8. If the circuit diagram upload was successful, you can view it in
the Circuit Diagram View (View, Circuit Diagram) and see the
associated device in the Project View (View, Project).
Using the Cross-Reference
List The cross-reference list allows you to obtain a fast overview of the
operands used in the circuit diagram. If you have not opened your
project, open the one you have previously saved by choosing File,
Open so that we can view a cross-reference list.
1. Select the appropriate PicoSoft project file, which has the suffix
e40. In our example, the file is called “conveyorbelt.e40”. Click
the Open button.
PicoSoft will load the conveyor belt project.
2. Switch from Project View to Circuit Diagram View via Circuit
Diagram, Circuit Diagram View.

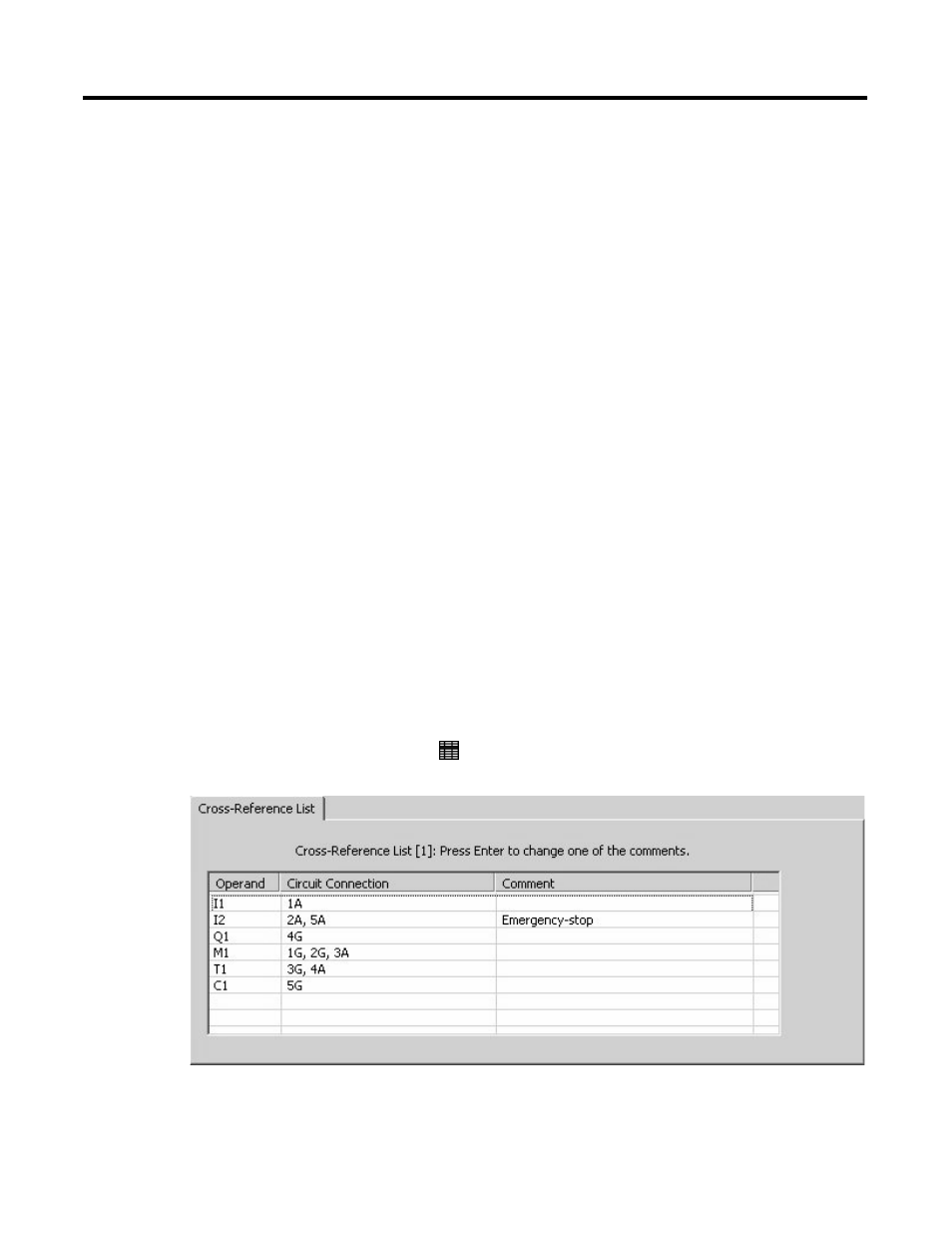

3. Once you are in Circuit Diagram View you can now display the
cross-reference list. To do this, choose Circuit Diagram,
Cross-Reference List or alternatively, the cross-reference list
button in the toolbar.
You can also use the cross-reference list to assign comments.
