4-8 Configuring a Scanner
8. Click Close. The Scan List Editor dialog box reappears.

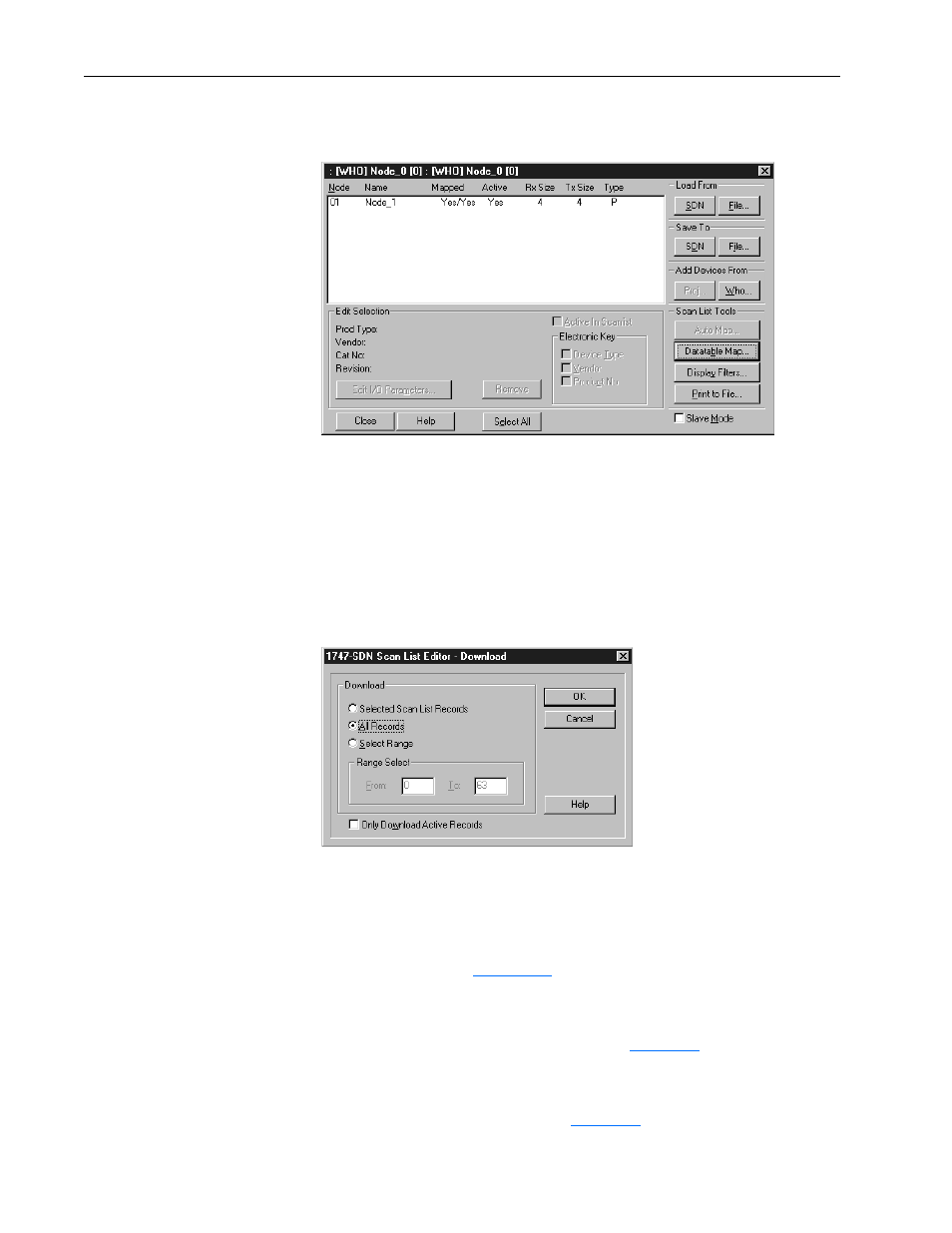

Figure 4.14 Scan List Editor Dialog Box
The data transmitted between the 1329I unit and SLC scanner is no
mapped to the scanner.
Saving the Configuration After creating a configuration, you should download it to the scanner.
1. In the Scan List Editor dialog box, click SDN under Save To. The Scan
List Editor - Download dialog box appears.
Figure 4.15 Scan List Editor - Download Dialog Box
2. Select All Records, and then click OK. A DeviceNet Manager Message
will appear and inform you that the scanner will not be available for a
period of time.
3. Click OK to download the new configuration to the SLC. Scan List
Editor dialog box ( Figure 4.14 ) reappears.
4. Click Close to close the Scan List Editor dialog box. A message box
appears and prompts you to save the configuration to a file. If desired,
save to a file. The 1747-SDN dialog box (
Figure 4.3 ) appears.
5. Click Close to close the 1747-SDN dialog box. A message box appears
and prompts you to save the configuration to a file. If desired, save to a
file. The Network Who window (
Figure 4.2 ) appears.
