2-4 Installing the DeviceNet Option
4. On the DeviceNet option, set switches 7 and 8 to select the data rate at
which the network is operating. The default switch setting is to use the
setting of Parameter 104 - [NV Baud Rate].
Connecting the DeviceNet
Option and 1329I Unit to the
Network 1. Verify that power has been removed from the 1329I unit and network.
2. Connect a DeviceNet cable to the network.
Important: Maximum cable length depends on data rate. Refer to the
DeviceNet Cable System Planning and Installation Manual.
3. Connect a Linear plug to the DeviceNet cable.

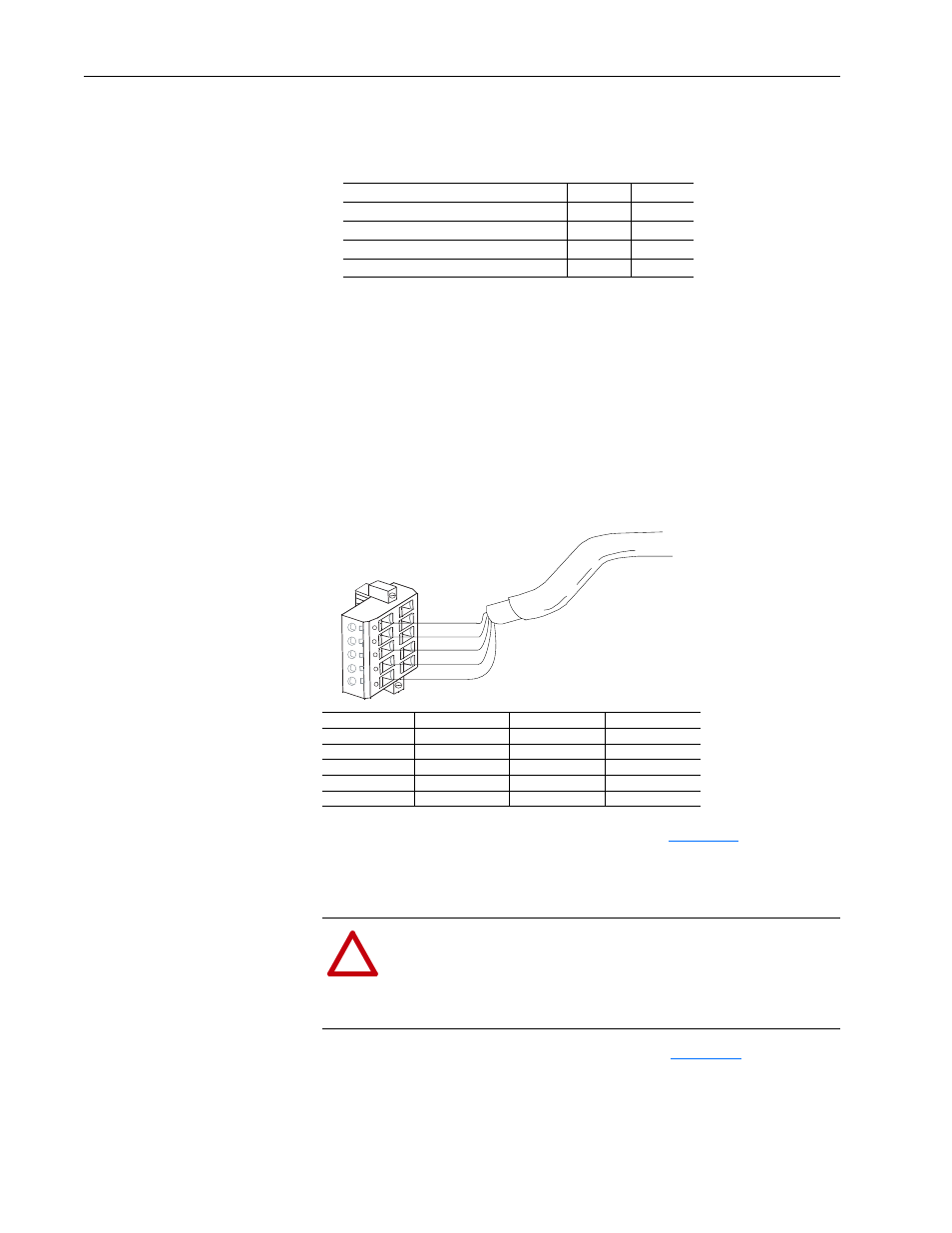

Figure 2.4 Connecting a 10-Pin Linear Plug to the Cable
4. Connect the DeviceNet cable to the 1329I unit. Figure 2.5 shows an
example.
Reconnecting the Cover to
the 1329I Unit
1. Connect the display cable and install the cover ( Figure 2.5 ).
Data Rate Switch 8 Switch 7
125 kBPS 0 0
250 kBPS 0 1
500 kBPS 1 0
Set by Parameter 104 - [NV Baud Rate]
(1)
(1) The default parameter setting is autobaud.
1 1
Terminal Color Signal Function
5 Red VDC+ Power Supply
4 White CAN_H Signal High
3 Bare SHIELD Shield
2 Blue CAN_L Signal Low
1 Black COMM Common
White
Bare
Blue
Black
5
Red
4
3
2
1
!
ATTENTION: Hazard of injury or death exists. The cover
screws must be securely tightened in order to properly ground the
cover. Verify that all four cover screws are tightened to 1.46 N-m
(13 in.-lb.) before applying power to the 1329I unit. Failure to
tighten screws could result in severe bodily injury or loss of life.
