Configuring a Scanner 4-7
Mapping the Output I/O
1. In the Datatable Map dialog box ( Figure 4.11 ), select Output to map the
Output data. A dot appears in the circle.

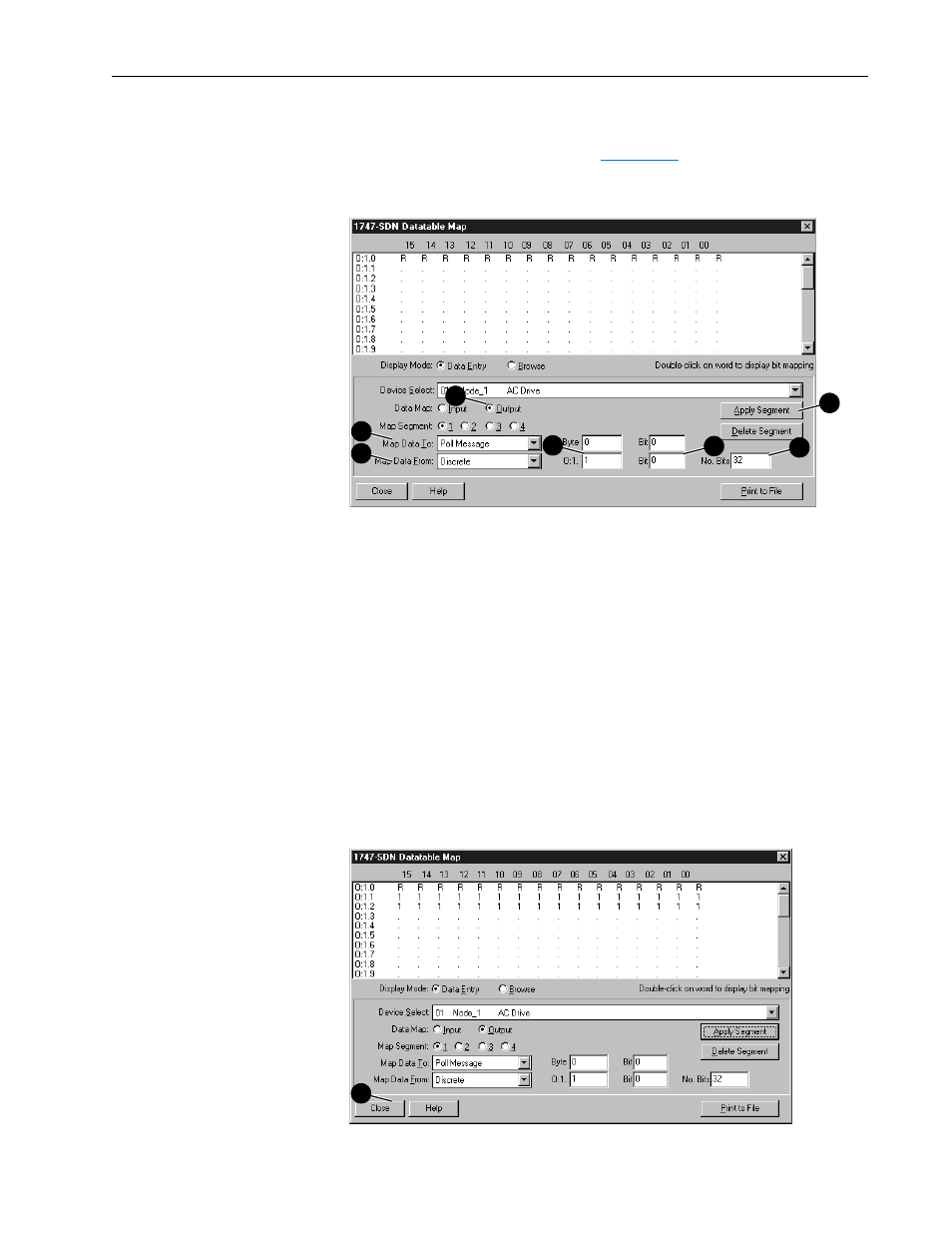

Figure 4.12 Output Datatable Map
2. In the Map Data From box, select from where the data is transmitted. In
our example, discrete is the source.
3. In the Map Data To box, select the destination of the data. In our
example, the destination is a poll message.
4. In the O:1 box, type the type word where the data will be found. In our
example, it is mapped to word 1(second word).
5. In the Bit box, type the bit at which the data starts. In our example, the
data will start at bit 0.
6. In the No. Bits box, type the number of bits that your data requires. In
our example, 32 bits will be used.
7. Click Apply Segment. A new datatable map appears in the dialog box.
Figure 4.13 Output Datatable Map
1
2
3
4 5 6
7
8
