Installing the DeviceNet Option 2-3
Commissioning the 1329I
Unit for DeviceNet
1. Verify that power has been removed from the 1329I unit and network.
2. On the 1329I Integrated drive/motor, set the drive setup DIP switch in
position 10. The setting takes effect when the 1329I unit first receives
power. Cycle power after changing this setting.
Important: The drive requires a stop input at the control terminal block,
regardless of the setting of Parameter 34 - [Start Source].

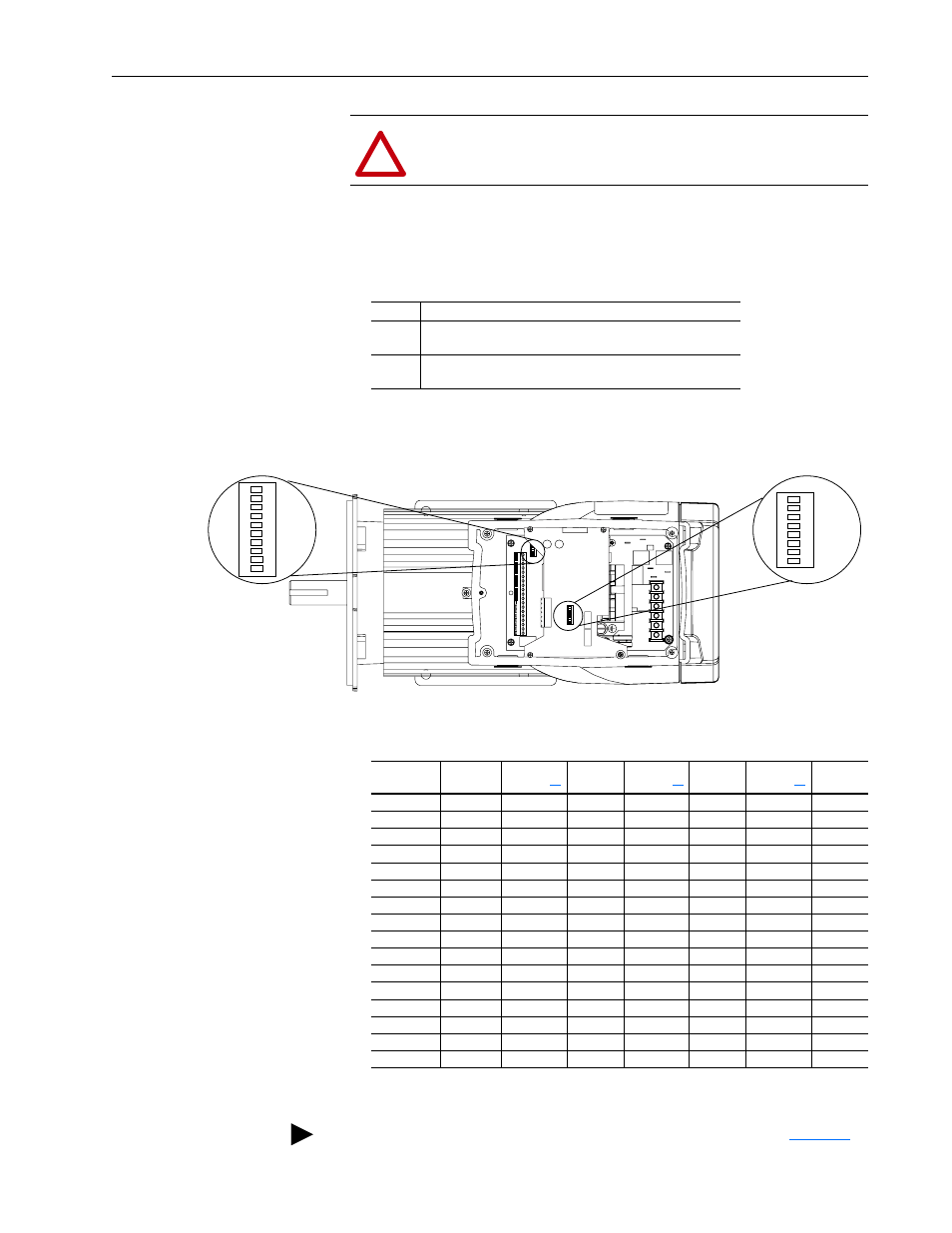

Figure 2.3 Switches on the Drive and DeviceNet Option
3. On the DeviceNet option, set switches 6 through 1 to a unique DeviceNet
address between 0 and 63. The default switch setting is 63.
!
ATTENTION: Risk of equipment damage exists. Pen ink or
pencil lead may damage the switches on the DeviceNet option.
Do not use a pen or pencil to set the switches.
Setting Description
0
1329I unit uses settings of DIP switches and rotary switches.
You can use DeviceNet only for monitoring the 1329I unit.
1 1329I unit uses settings of parameters in EEPROM. You can
use DeviceNet to program, control, and monitor the 1329I unit.
DC+
DC-
DBR
T/L3
S/L2
R/L1
PE
ON 1
2
3456
78
9
10
ON 1
2
3456
78
On= 1
Off = 0 On= 1
Off = 0
1329I Unit
Drive Setup
DeviceNet
Switches
Option
Switches
Node
Address
(1)
(1) If switches 7 and 8 are both On (1), then the DeviceNet option uses the node address from Parameter 103
- [NV MAC ID]. The default parameter setting is 63.
Switch
6 ----> 1 Node
Address
(1)
Switch
6 ----> 1 Node
Address
(1)
Switch
6 ----> 1 Node
Address
(1)
Switch
6 ----> 1
0 000000 16 010000 32 100000 48 110000
1 000001 17 010001 33 100001 49 110001
2 000010 18 010010 34 100010 50 110010
3 000011 19 010011 35 100011 51 110011
4 000100 20 010100 36 100100 52 110100
5 000101 21 010101 37 100101 53 110101
6 000110 22 010110 38 100110 54 110110
7 000111 23 010111 39 100111 55 110111
8 001000 24 011000 40 101000 56 111000
9 001001 25 011001 41 101001 57 111001
10 001010 26 011010 42 101010 58 111010
11 001011 27 011011 43 101011 59 111011
12 001100 28 011100 44 101100 60 111100
13 001101 29 011101 45 101101 61 111101
14 001110 30 011110 46 101110 62 111110
15 001111 31 011111 47 101111 63 111111
TIP: For a definition of node address and data rate, refer to the Glossary .
