3-4 Configuring the 1329I Unit and DeviceNet Option
5. Under Select Bitmap for this Device in the Create EDS Stub dialog box
( Figure 3.4 ), click Browse. An Open dialog box appears.

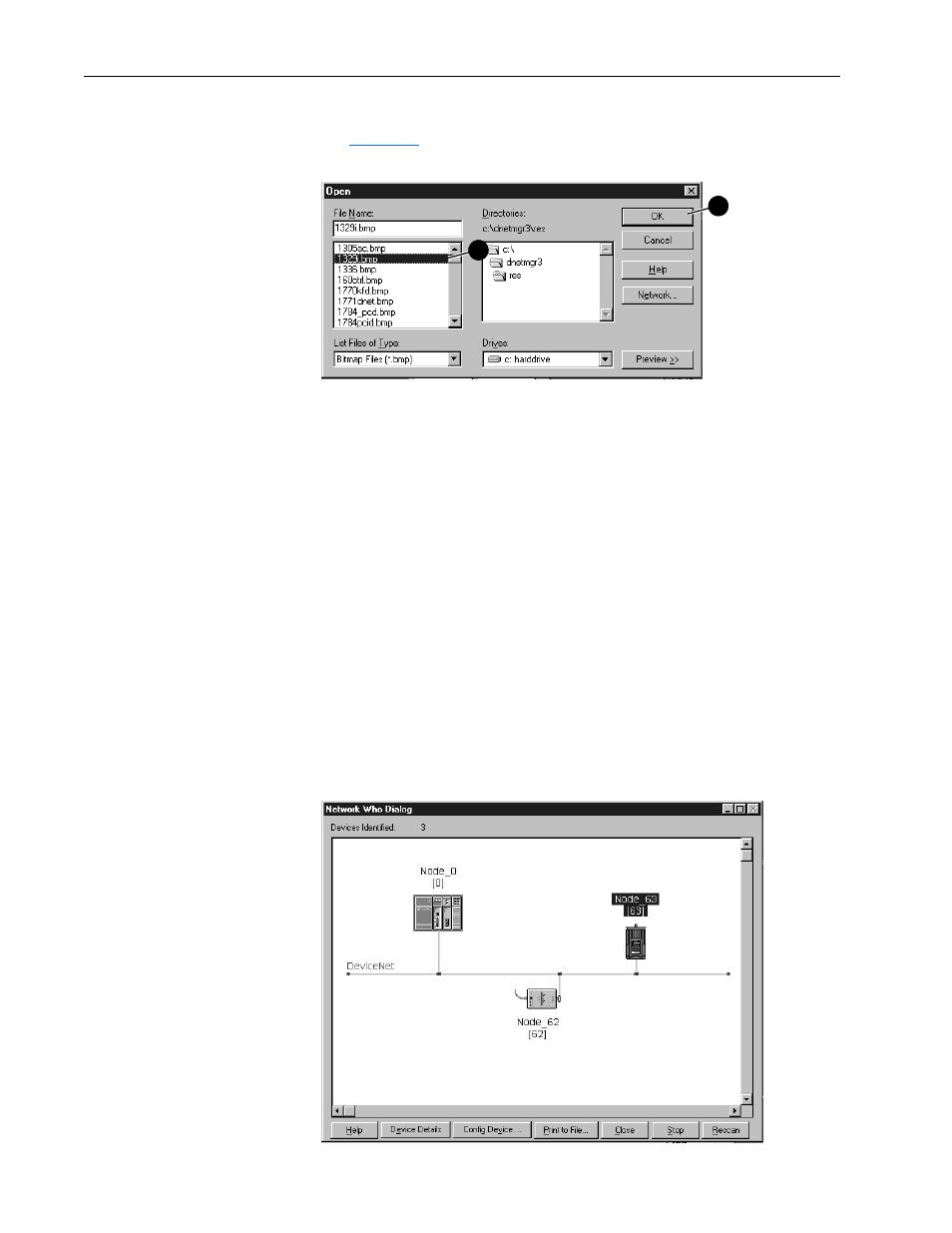

Figure 3.6 Open Dialog Box
6. Select the 1329I.bmp in the list box, and then click OK. The Create
EDS Stub dialog box reappears.
7. Click OK. A DeviceNet Manager message box appears and asks if you
want to save the EDS file to the EDS library.
8. Click OK to save the EDS file. The EDS Description dialog box appears.
9. Type a description (if desired), and then click OK. The EDS file,
description (if added), and icon that represents the 1329I unit are saved.
The new icon will appear the next time you scan the network.
Accessing Parameters in
the 1329I Unit and Option The parameters in the 1329I unit and the connected DeviceNet option can
be accessed with DeviceNet Manager. To access parameters:
1. Select Who > Network Who. The Network Who window appears, and
DeviceNet Manager scans the network for devices. You can wait for it to
scan the entire network, or click Stop after it displays your 1329I unit.
Figure 3.7 Example Network Who Window
