Appendix A – Specifications and Accessories
A-8
Approximate Dimensions, Continued
Dimensions are shown in millimeters (inches). Dimensions are not to be used for manufacturing
purposes.

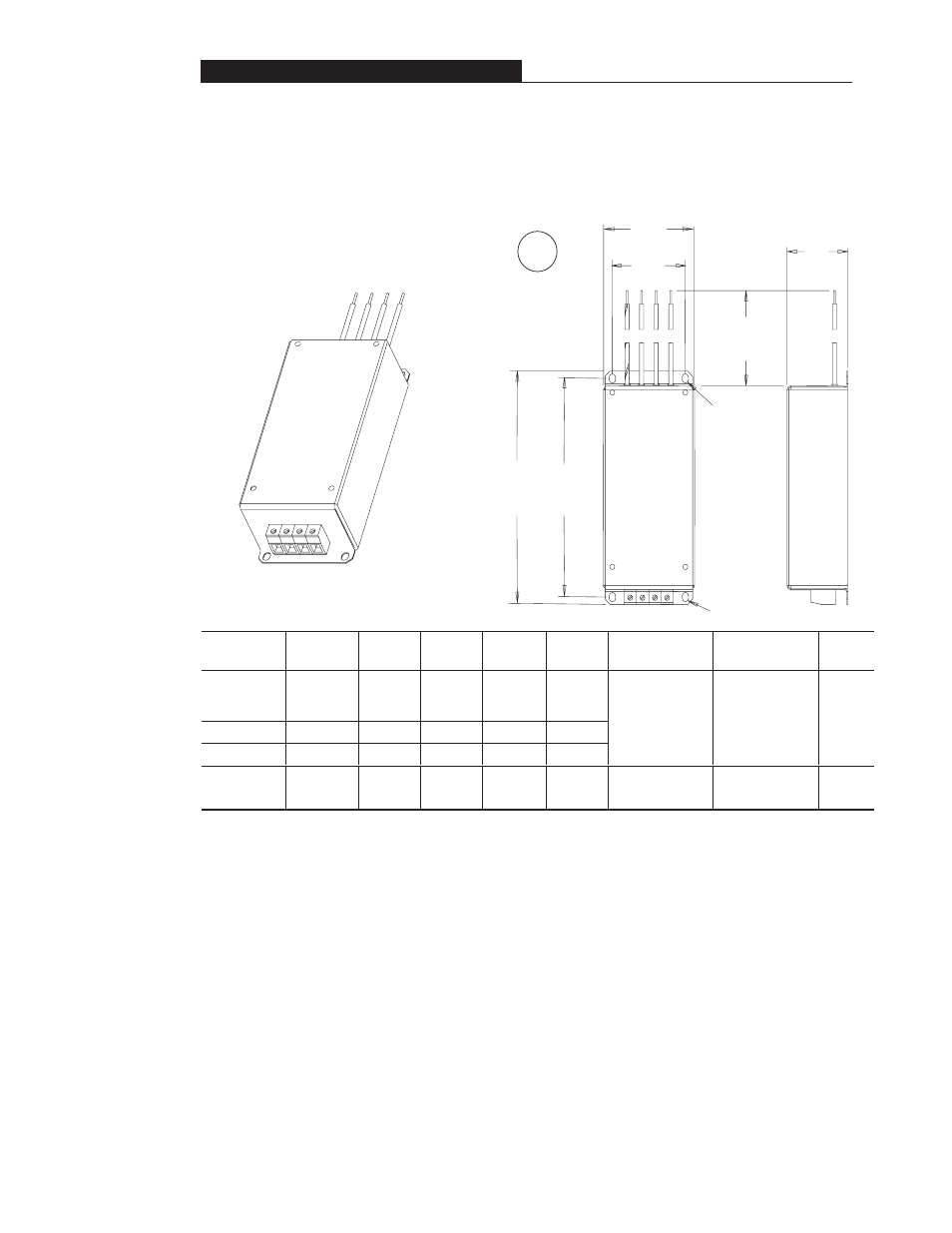

Figure A.6 – Line Filters
mm
(in.)
B
E
C
A D
G
F
H
Line Filter
Module A B C D E F G H
160S-RFA-6-A
160S-RFA-10-A
160S-RFA-16-A
182.0 (7.17) 75.0 (2.95) 30.0 (1.18) 167.0 (6.57) 60.0 (2.36)
6.5 x 4.5 (0.26 x 0.18)
hole dim.
( p ces)
4.2 (0.17)
dia. hole
( p ces)
200
(7.87)
160-RFB-3-A 182.0 (7.17) 75.0 (2.95) 35.0 (1.38) 167.0 (6.57) 60.0 (2.36)
hole dim.
(2 places)
dia. hole
(2 places)
(7.87)
160-RFB-9-A 182.0 (7.17) 75.0 (2.95) 47.5 (1.87) 167.0 (6.57) 60.0 (2.36)
160-LF
(All Types) 174.0 (6.85) 75.0 (2.95) 50.0 (1.97) 163.0 (6.41) 60.0 (2.36) 6.9 x 5.25
(0.272 x 0.207)
hole dim.
6.9 x 5.25
(0.272 x 0.207)
hole dim.
200
(7.87)
