Debris Cover

DIN Mounting

Appendix A – Specifications and Accessories

A-5

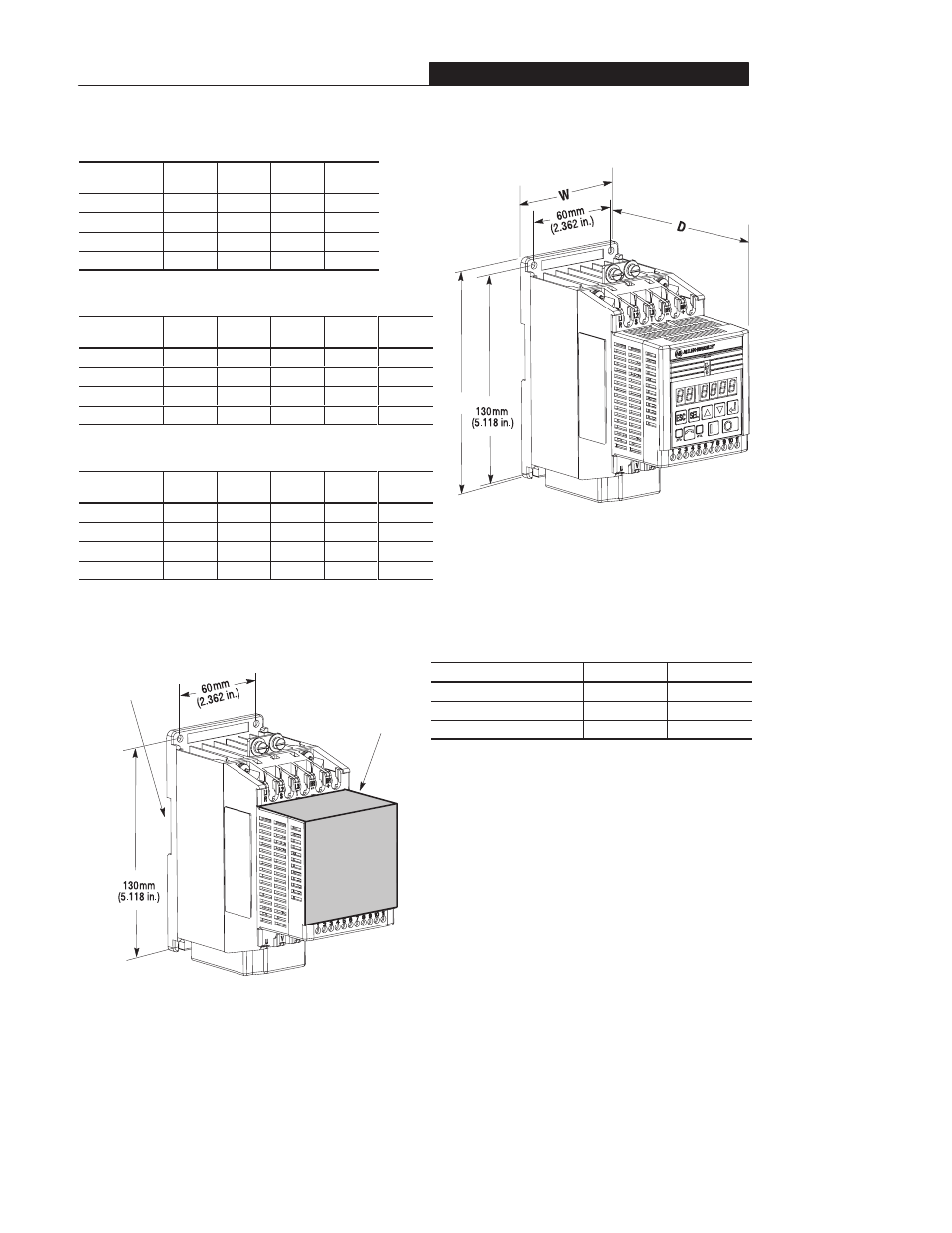

Figure A.1 – Controller Dimensions

Controllers Rated 200 – 240V Single Phase

Overall
Dimensions

160S
AA02

160S
AA03

160S
AA04

160S
AA08

➀

H mm (inches)

152 (6.00) 152 (6.00) 152 (6.00) 152 (6.00)

W mm (inches)

72 (2.83)

D mm (inches)

136 (5.4)

Weight Kg. (lbs.)

0.8 (1.76)

0.9 (1.98)

Controllers Rated 200 – 240V 3 Phase

Overall
Dimensions

160
AA02

160
AA03

160
AA04

160
AA08

160
AA12

H mm (inches)

152 (6.00) 152 (6.00) 152 (6.00) 152 (6.00) 152 (6.00)

W mm (inches)

72 (2.83)

72 (2.83) 130 (5.12)

D mm (inches)

136 (5.4)

Weight Kg. (lbs.)

0.8 (1.76)

0.9 (1.98)

1.1 (2.46)

Controllers Rated 380 – 460V 3 Phase

Overall
Dimensions

160
BA01

160
BA02

160
BA03

160
BA04

160
BA06

H mm (inches)

152 (6.00) 152 (6.00) 152 (6.00) 152 (6.00) 152 (6.00)

W mm (inches)

72 (2.83)

72 (2.83) 130 (5.12)

D mm (inches)

136 (5.4)

Weight Kg. (lbs.)

0.8 (1.76)

0.8 (1.98)

0.9 (1.98)

1.1 (2.46)

➀

External capacitor modules are provided with this model and mount separately.

Use the drilling template at the back of the manual for mounting the controller.

Figure A.2 – Mounting Requirements

Dimensions

Metric

English

Min. Panel Thickness (14 GA)

19mm

0.0747 in.

Mounting Base Screws

m4 x 0.7

# 8 – 32

Mounting Torque

1.13 to 1.56 Nm

10 – 14 lb. in.

D See Figure A.1 for details on controller

dimensions and weights.

D There must be a minimum of 12.5mm

(0.5 inches) clearance around all sides of the
controller. Use either DIN rail or mounting
holes. (Use the drilling template at the back of
the manual for mounting the controller.)

D Leave debris cover attached during controller

installation to protect from falling debris. To
ensure proper controller operation, remove
cover before applying power.
