A NCHORAGE L OCATIONS AND G EOMETRIES
B ELT R OUTING
The expected restraining function of any seat belt or racing harness can
only be achieved by
• optimised strap routing around and from the wearer’s body
• optimised anchor point locations
An occupant can be effectively restrained ONLY by load transfer
through the hard points of the occupant’s body. The only accessible
hard points are the following:
• pelvic
• thorax [chest] ] to a limited level only
• clavicle [shoulders]

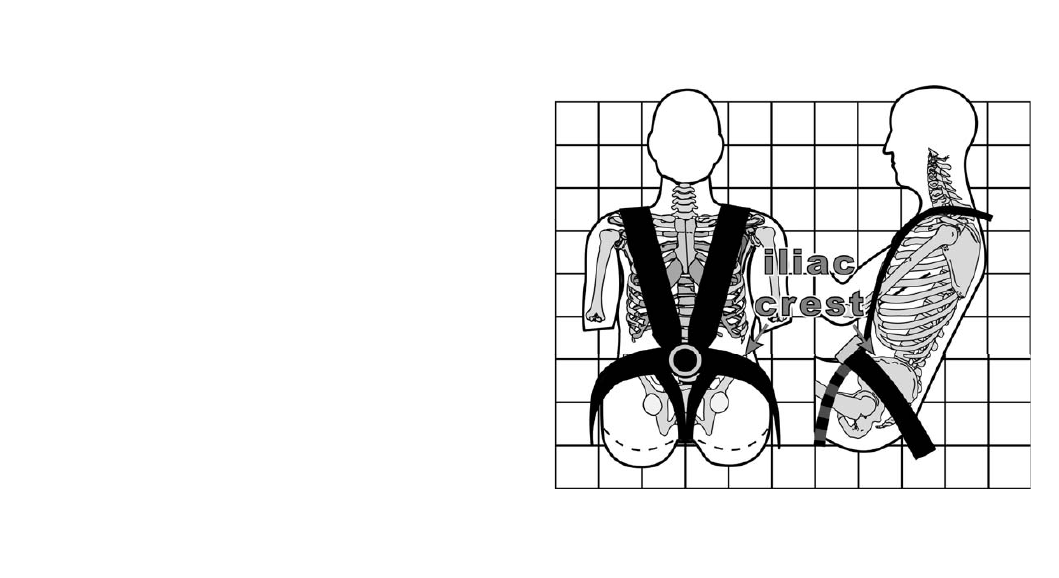

Therefore, it is essential that strap routing be optimised as described in
the following graphs.
