9. Check again for proper shoulder belt tilt lock adjuster positioning and for
the 3-bar slide to be as close as possible to the roll cage bar or end
bracket.

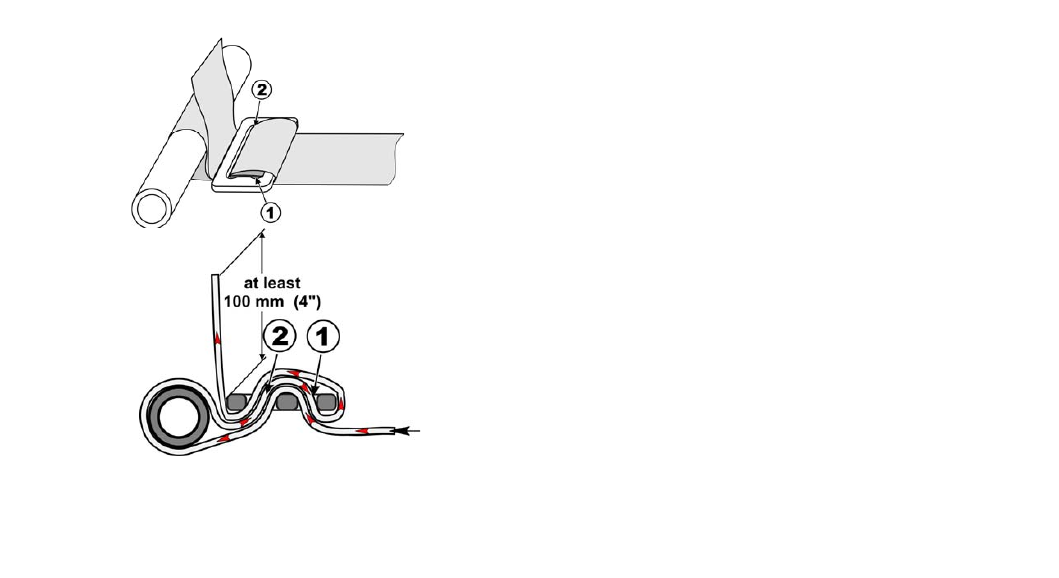

L IGHT W EIGHT D-R ING [50 MM (2”) AND 75 MM (3”)] W RAP
This installation is to be used for
• shoulder strap installation to
o
roll cages
o
elbow brackets in open wheel race cars
o
SCHROTH HANS ® adaptor for open wheel race cars
• as 50 mm [2”] version also to assemble open strap ends to brackets.
Do not install a lap belt directly to a roll cage by wrap around
technique.
W
HAT DO YOU NEED
:
ƒ open strap ends
ƒ the D-Ring type slide for either 50 mm (2“) or 75 mm (3“) wide
webbing
ƒ an accessible roll cage bar
or
ƒ
an homologated bracket made by SCHROTH.
Racing harnesses with an end bracket assembled to the shoulder belt
by a D-Ring slide, allow to dismount the bracket and use the D-Ring slide
for wrap around installation directly to the roll cage bar. The diameter of
that bar shall not exceed 50 mm [2”].
This D-Ring slide system is not to be used to attach 75 mm [3”] webbing
to brackets with less than 3” webbing wide slots.
