Webbing should be crossed if the distance from the seat openings to
the mounting bolt point or harness bar exceeds 450 mm (18”).
When mounting to a harness bar with a wrap mount and the distance
to the bar from the seat is less than 450 mm (18”), a section of roll bar
padding, fixed with cable ties, should be added to the outside of each
of the shoulder harnesses to ensure that they can not further separate
when unloaded.
3-Bar Adjusters pictured in the examples are not positioned next to the
bar and the final locking portion of the wrap has not been completed.
This will result in significant slippage through the adjuster and significantly
more elongation of the shoulder belts.

C O R R E C T

N S T A L L A T I O N

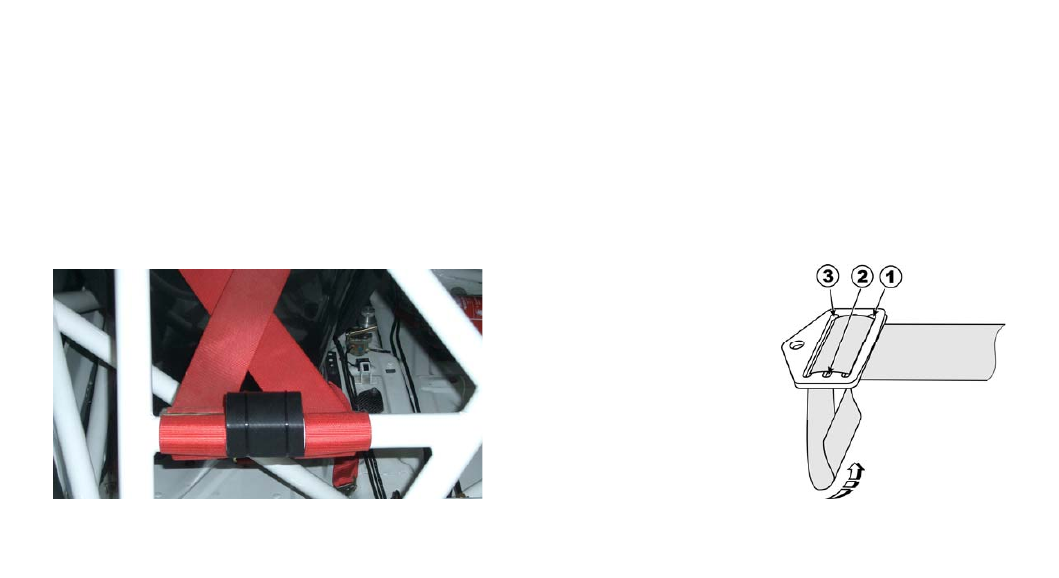

example for a spreader using FIA 8857-2001 padding material

Bolt-in Wrap Bracket assembling
W

HAT DO YOU NEED

• Racing harness with 50 mm (2”) or 75 mm (3”) webbing and open

strap ends

• a bolt-in wrap bracket with 50 mm (2”) webbing slot [B 63]
or
• a bolt–in wrap bracket with 75 mm (3”) webbing slot [B 40]

NSTALLATION PROCEDURE

1. webbing shall wrap from the body facing side of bracket up into

slot 1

2. pull through approx.

270 mm (11”) and fold
down through slot 3
temporarily leaving 50 mm
(2”) of slack.
