Schroth Racing LATCH LINK STYLE HARNESSES User Manual
Schroth, Latch link style harnesses

SCHROTH
LATCH LINK STYLE HARNESSES
HOW TO USE THE LATCH MECHANISM
SCHROTH’s Latch Link style harnesses use a very simple and standard central latching mechanism to fix all points of
the restraint together.

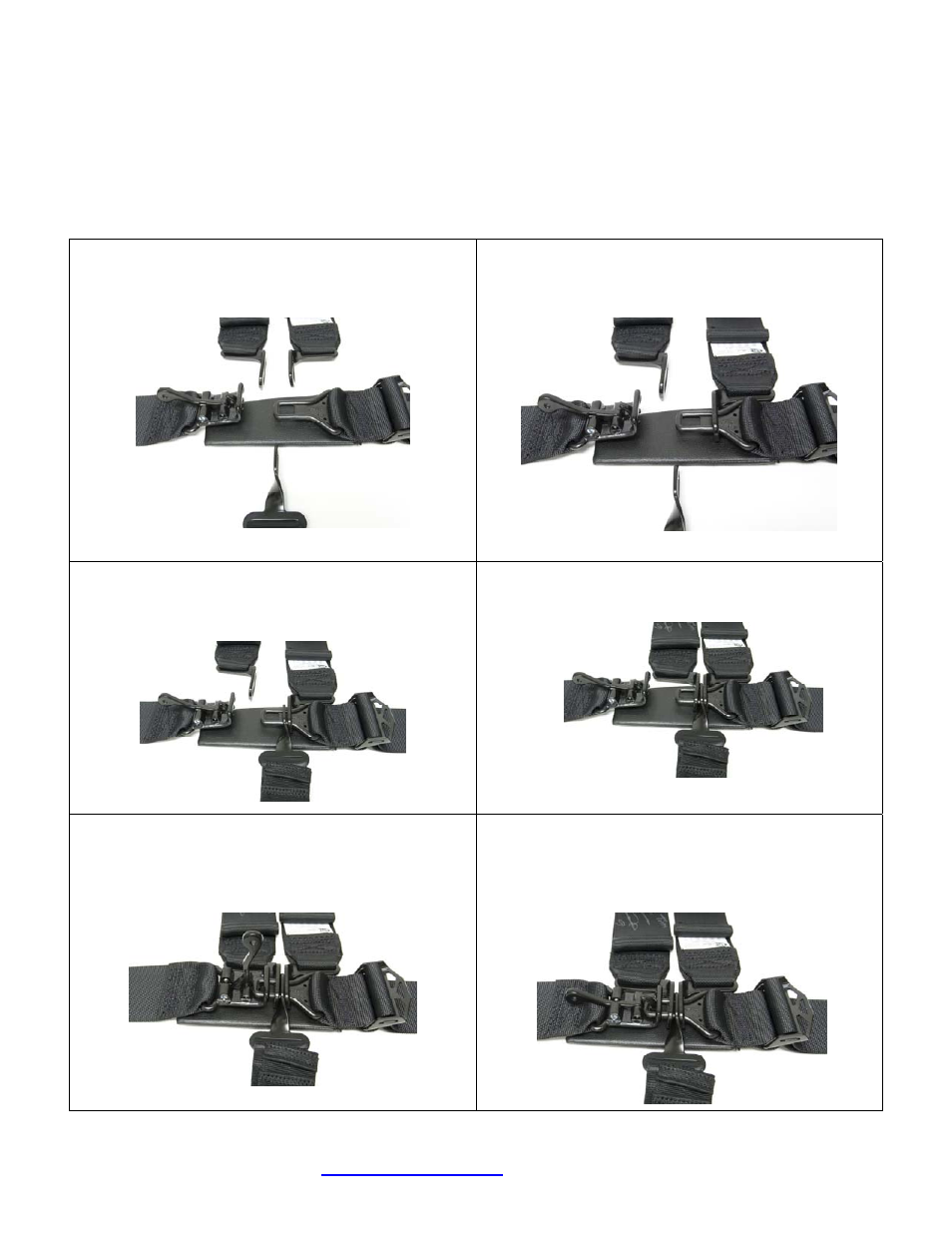

1.
The harness is shown with no points
latched
2.
Slide the Left Hand shoulder belt over the
male part of the Lap Buckle
3.
Slide the Anti-sub Strap Buckle over the
male part of the Lap buckle.
4.
Do the same for the Right Hand Shoulder
5.
Keeping the lever open, slide the Right
hand lap latch over the tip of the male
latch.
6.
Close the lever on the Right hand lap to
lock around the hole in the tip of the male
latch
–
