W R O N G
C O R R E C T
C O R R E C T C O R R E C T
B RACKET I NSTALLATION
• In cases where other than 7/16” 20 UNF threaded bolts will be used,
make sure bolts are in the range of those listed above and that they
match the anchorage threads in size.
• Follow all instructions and information, SAFETY INSTRUCTIONS and
WARNING boxes provided under section “Important Information
about Bolts and Torques”.
• In case you need brackets with a diameter not fitting the bolt size,
contact your dealer or importer of this product.
• Choose the matching bushing sleeves and washers from the
installation kit for the bolt diameter used [1/2” washer not included].

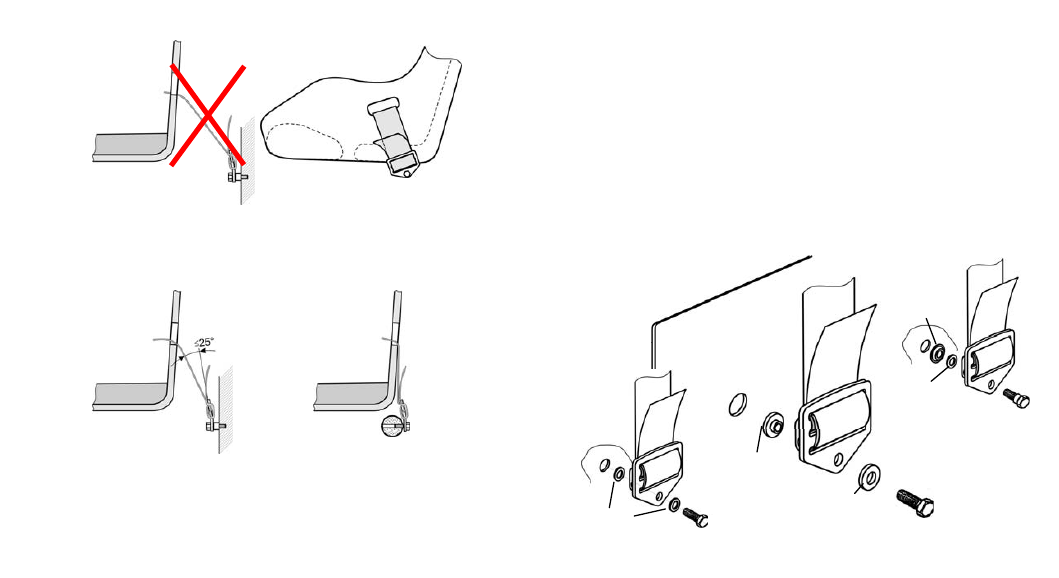

• Assemble as shown in drawing below.
profiled
washer
M8, M10, 5/16”,
3/8 and 7/16””
washer
1/2” bolt
rubber
washer
7/16” - 20 UNF
bushing
sleeve
washer
