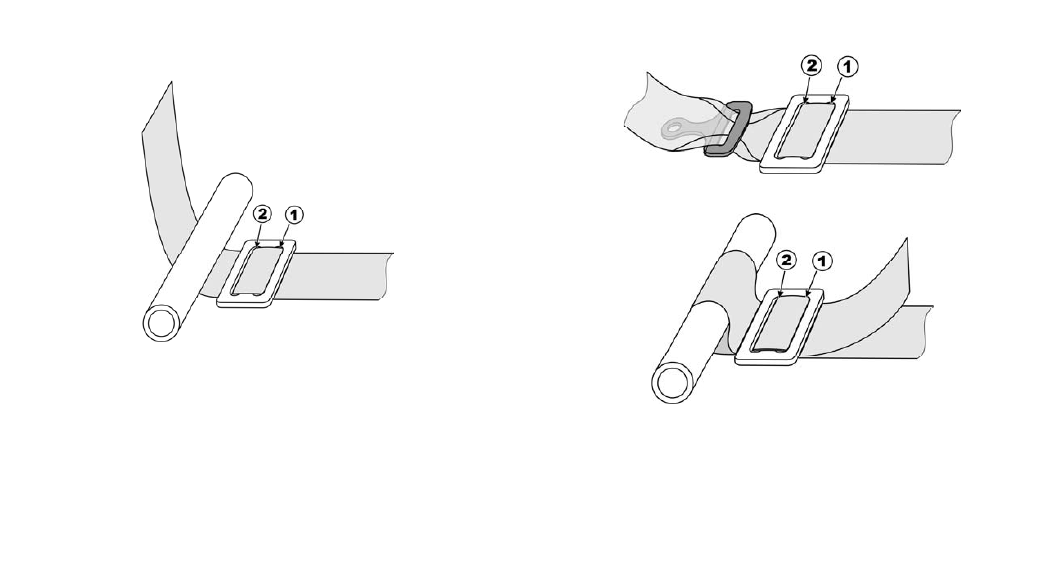

Installation steps:
1. slide the webbing through slot 1 and 2 as shown
2. make sure the protruding strap end is long enough to have sufficient
webbing length available for the following wrapping procedure. A
minimum of 360 – 400 mm (14” – 16”) is recommended.
3. the 3-bar slide shall be positioned as close as possible to either the roll
cage bar or to the end bracket.
4. wrap the free strap end from underneath around the roll cage bar or
through the webbing slot of an end bracket.
5. in case of the combination of a 50 mm bracket slot and 75 mm
webbing, fold the webbing in as shown.
6. wrap webbing back through slot 2 and 1.
7. fold strap end back and run it through slot 2 again.
8. make sure the strap end protrudes at least 100 mm (4“) or even
longer from slot 2. If it is less than 100 mm disassemble and start over
again. If longer, roll in the strap end and fix it by a cable tie to the
shoulder belt.
