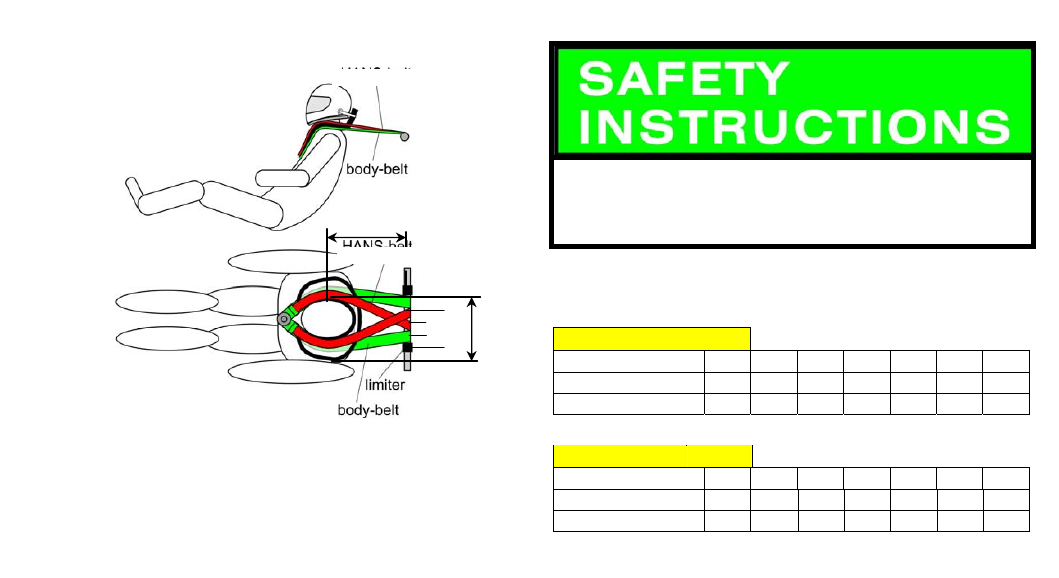

I NSTALLATION IN A SEDAN WITH ROLL CAGE :
Installing the belts to a rear roll cage bar, the BODY-belt attachment
must be positioned next to the “HANS-belt” attachment. If wrap around
installation is used, both, the HANS-belt and the BODY-belt shall be
installed side by side.
In case of a wrap around installation to a roll bar make sure the
transversal positioning of the shoulder straps is permanently secured
by some means, e.g. FIA Standard 8857-2001 like rollbar padding,
hose clamps or similar devices.
A
LL WRAP AROUND INSTALLATION
:
HANS ® size R (European Model size M)
Z = (mm [inch]) 229 [9”]
X (mm [inch]) 203 [8”] 305 [12”] 406 [16”] 508 [20”] 610 [24”] 711 [28”] 813 [32”]
Y (mm [inch]) HANS-belt 152 [6”] 102 [4”] 64 [2,5”] 51 [2”] -51 [-2”] -51 [-2”] -76 [-3”]
Y (mm [inch]) Body-belt 229 [9“] 229 [9“] 191 [7,5“] 178 [7“] 178 [7“] 178 [7“] 203 [8“]
HANS ® size L
Z = (mm [inch]) 254 [10”]
X (mm [inch]) 203 [8”] 305 [12”] 406 [16”] 508 [20”] 610 [24”] 711 [28”] 813 [32”]
Y (mm [inch]) HANS-belt 178 [7“] 127 [5”] 102 [4”] 51 [2”] 51 [2”] 51 [-2“] 76 [-3“]
Y (mm [inch]) Body-belt 254 [10”] 254 [10”] 229 [9“] 178 [7“] 178 [7“] 178 [7“] 203 [8“]
X
Y Z
„HANS-belt“
„HANS-belt“
