S TAINLESS S TEEL B RACKET INSTALLATION
These brackets are commonly used in SCHROTH street legal harnesses
[FE models] and other bolt-on installations.
The brackets are made from special stainless steel so they can be pre-
bent at installation to the direction of pull of the webbing where it is
attached to the bracket as the belt flows over the body. This will help to
avoid straps from dumping/loading into bracket slot edges and reduces
uneven load to attached webbing. This significantly reduces the risk of
webbing tear and cut.
Proper alignment of the webbing pull through the bracket reduces the
bending stress [risk of fatigue cracks] to anchor points during driving and
during an accident.

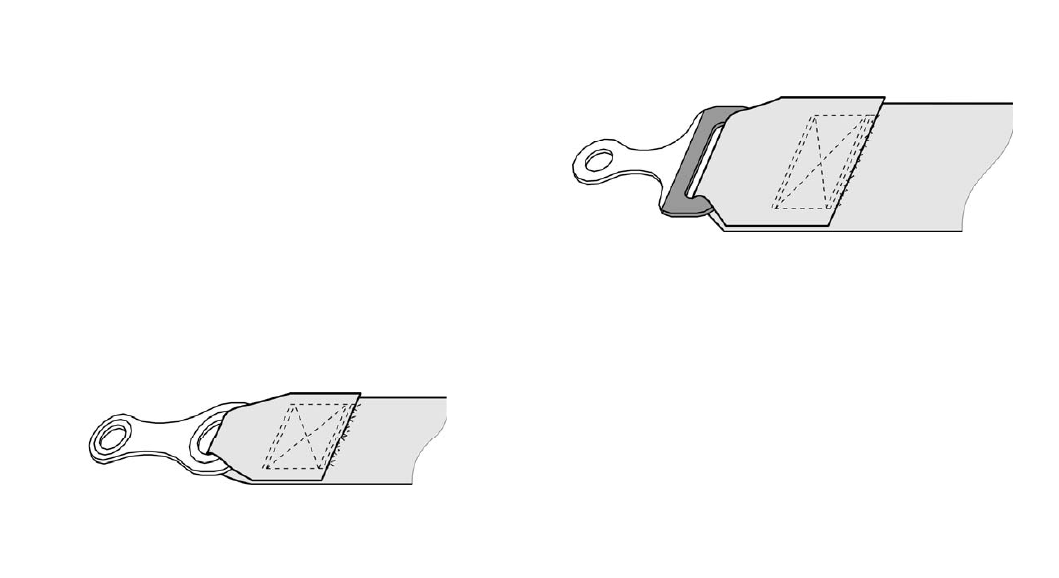

For 50 mm [2”] wide webbing two versions are available and used as
sewn in brackets:
• bracket B 23 A, coming with a 12,2 mm [15/32”] hole for use of 3/8”,
10 mm or 7/16” and 15/32” bolts.
• bracket B 23 B, same as above but with a 12,8mm [1/2”] hole for use
of 7/16” or 1/2” bolts.
For 75 mm [3”] webbing either sewn in or assembled bracket B 23 C is
available. Assembly is commonly done by using a 3-bar slide. This
bracket comes with a 12,8 mm [1/2”] hole for use of 7/16” or ½” bolts.
In case the bolt diameter to be used does not fit with the bracket hole,
contact your dealer or the importer for help.
