• Bolt-in and tighten. Follow all information as well as SAFETY
INSTRUCTIONS and WARNING boxes provided under section titled
“Important Information about Bolts and Torques”.
• Make sure the bracket is directed forward to allow even load on the
webbing and anti-sub strap assembly during a crash.
I
NSTALLATION WITH END LOOP
This installation is commonly used for shoulder belt installation in open
wheel race cars and requires a made to measure racing harness.

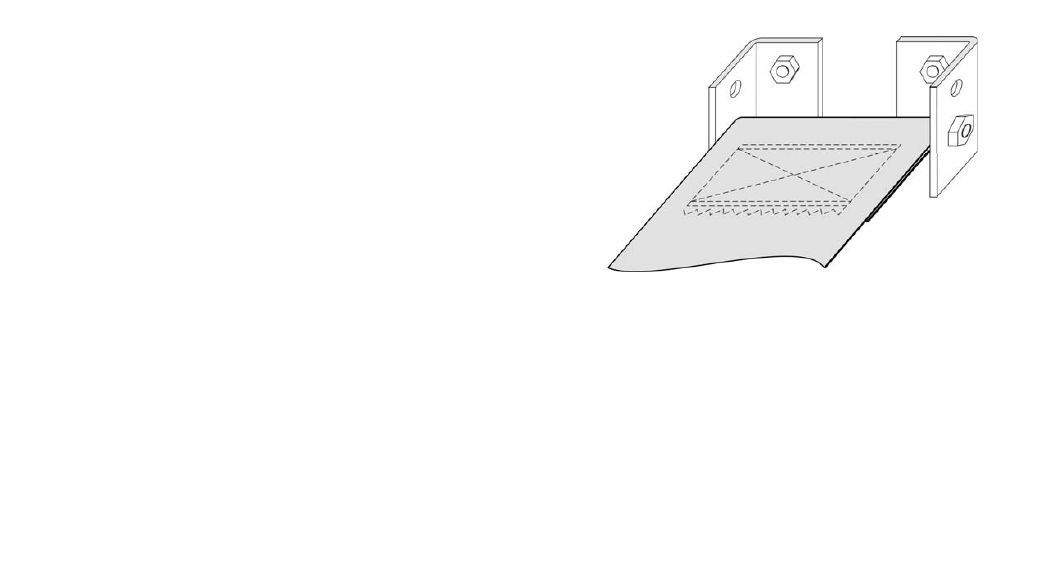

75 mm [3”] webbing installed to custom designed elbow bracket system.
