Schroth Racing All models - Competition Instructions - Manual (Page 28)

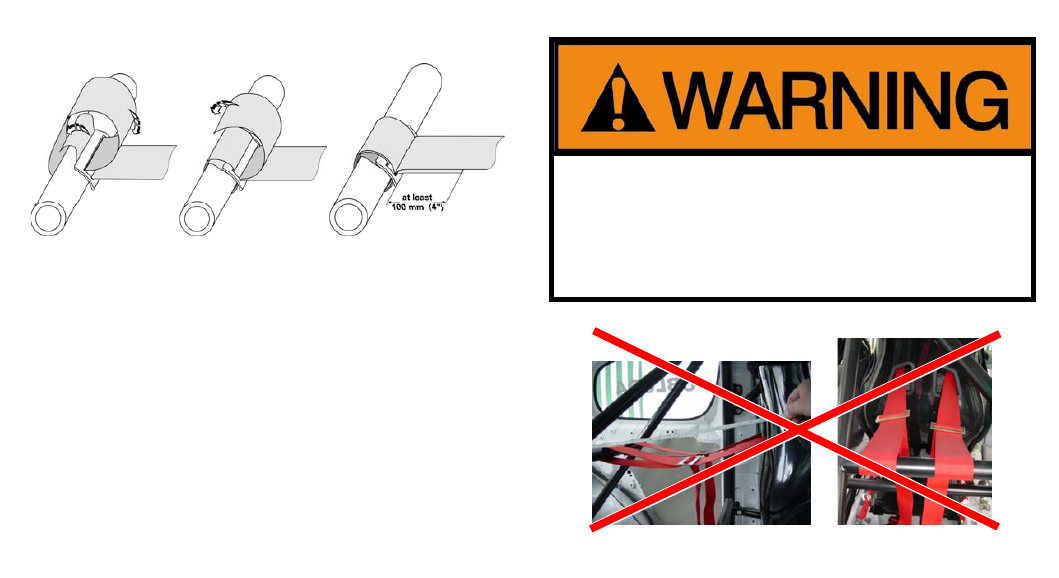

Wrapping Instructions:
1. position D-Ring slide to roll bar with wider bar atop
2. slide a minimum of 600mm (24”) of strap length through D-Ring slide
and from underneath around roll bar [first loop]
3. slide strap from atop through D-Ring slot towards roll bar and back
between roll bar and first loop until it protrudes from slot in D-Ring
slide.
4. Pull at shoulder belt to check that wrap will tighten when being
loaded.
5. Wrap strap end around roll bar again [third loop] and thread through
D-Ring slide again. Shoulder belt is now sandwiched between first
loop webbing and protruding strap end.
6. Make sure strap end protrudes at least 100 mm [4”]
Incorrect wrapping or 3-bar slides wrapped too far away from
the roll cage bar or from any bracket may allow webbing to slide
during an accident. Extra elongation will occur which may
reduce the effectiveness of the racing harness and the HANS ® , if
worn. Shoulder belts may slide off the HANS ® or will give extra
slack allowing possible head and chest impact into the steering
wheel. Severe injuries or death may occur.
W R O N G I N S T A L L A T I O N S
