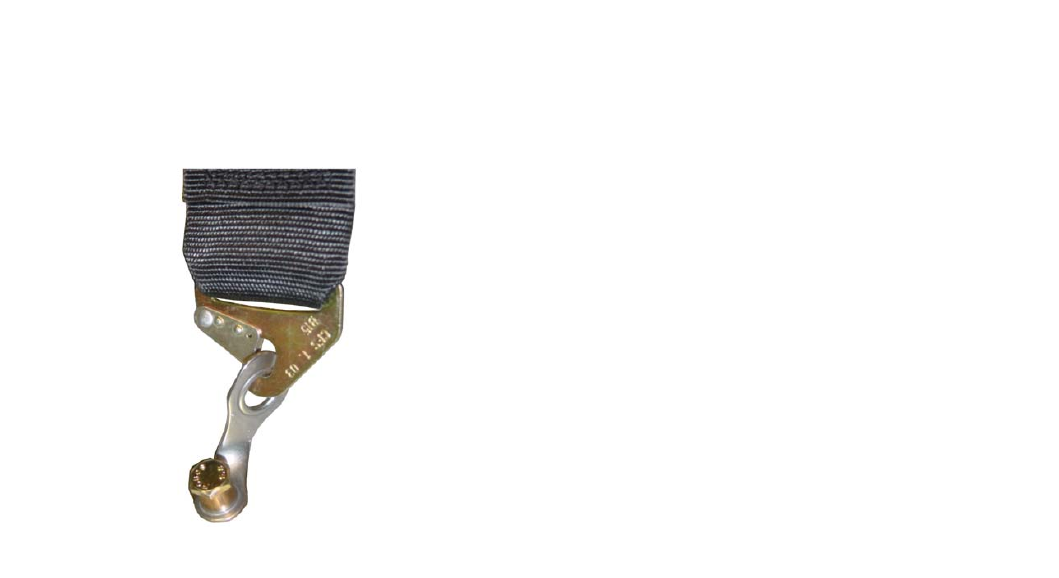

B 23 A and B 23 B bracket installation for snap-on use.
B 23 A and B 23 B brackets allow snap-on installation where eye bolts do
not have enough space or access to the anchor point or if restricted
seat adjustment is impaired when an eye bolt is installed. Brackets are
available as Installation Kit with B 23 A and with B 23 B.
For installation and bending of brackets follow the instructions under the
section “Stainless Steel Bracket installation” above.
B OLT - IN SWIVELLING W RAP B RACKETS
The SCHROTH wrap brackets are designed for fully swivelling installation.
• Versions B 63 for 50 mm [2”] and B 40 for 75 mm [3”] webbing are
available.
• The bushing sleeves supplied with each bracket allow swivelling
installation with bolt dimensions of 8 mm, 10 mm, 5/16”, 3/8”, 7/16”
and 1/2”.
• The wrap webbing assembly allows fine adjustments for lap belt tilt-
lock adjuster positioning or lap belt length.
F OR INSTALLATION YOU NEED :
• open end webbing either 50 mm [2”] or 75 mm [3”]
• bracket matching the webbing width
• bolts of size and length fitting to the anchorage threads
• bushing sleeves and washers from the installation kit matching the
bolts.
I
NSTALLATION
• Anchor point positioning has to provide a bracket pointing toward
the driver as shown in sketches.
• Webbing shall not run off the bracket under an angle of more than
plus or minus 25°.
