1.1. Use e.g. “Loctite 243” to secure bolt.
1.2. Bolt in and tighten bolts with torques as listed in section “Important
Information About Bolts and Torques”, at 1/2” bolt installation allows
looseness for bracket to swivel.
1.3. Check for unrestricted bracket swivelling and webbing alignment
in expected direction of pull.
1.4. In case brackets do not swivel check for the proper assembling
and torque or any other reason which may restrict the bracket
from free swivelling. Change assembly and installation to provide
proper swivelling.
Safe harness belt functioning requires belt and bracket alignment
during a crash. Any restriction of the harness belt or bracket may
cause the webbing dumping/loading into bracket edges and
webbing may become cut. Severe injuries or death may occur.

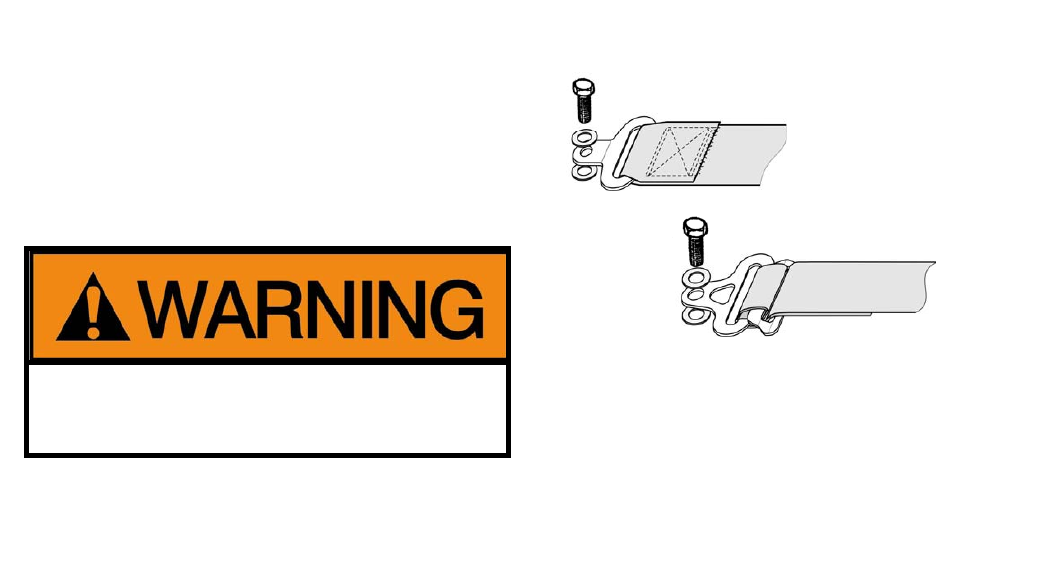

L IGHT W EIGHT B OLT - IN B RACKETS [N OT FOR NASCAR!]
B 33 [not for
SFI Spec. 16.5/NASCAR]
B 64.20.xx
1. B 33 brackets are used in made to measure racing harnesses only.
2. These brackets are commonly used for 50 mm [2”] and for a fold in
75 mm [3”] webbing sewn in assembly.
3. B 64.20.xx can also be used in conjunction with a D-Ring LV 4 for a
wrap mount with 50 mm (2”) webbing.
4. Bolt hole can vary for 8 mm or equivalent 5/16” or 10 mm or 3/8” bolt
diameter.
5. Bolts and washers are not supplied by SCHROTH.
6. Choose from bolts with grade 8.8 or up only.
