‎Chapter 4 PAS Application Software Configuring Recorders
88 Series PM175 Powermeters
No. File Type Size,
Bytes
Channels Number of
Records
Number of
Events
Description
11 Data log #10 Wrap
around 7920 3 12 12 Configured for
EN50160 harmonics
survey
18 Waveform log #1 Wrap
around
256320 6 40 20 32 samples/cycle
x 32 cycles/series
19 Waveform log #2 Wrap
around
256320 6 40 20 128 samples/cycle
x 8 cycles/series
27 EN50160 Power
Quality log Wrap
around 32000 1000 1000

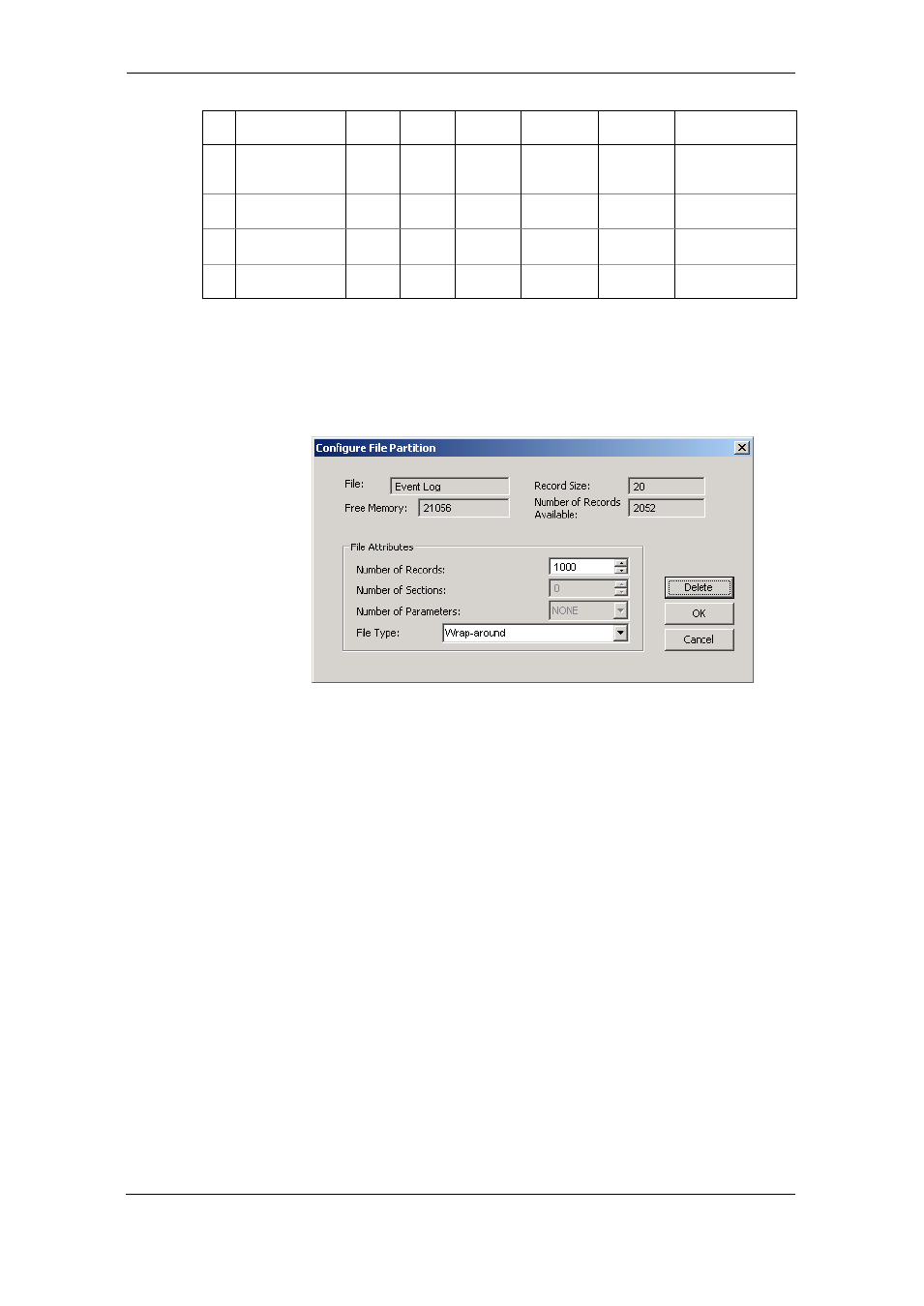

Configuring the Event Recorder
To configure the Event log file:
1. Double click on the Event Log file partition with the left
mouse button.
2. Select a partition type for your file.
3. Select the maximum number of records you want to be
recorded in the file.
4. Click OK, then send your new setup to the meter or save
to the device database.
By default, the Event recorder stores all events related to
configuration changes, reset, and device diagnostics. In
addition, it records events related to setpoint operations. Each
setpoint should be individually enabled for recording to the
Event log.
To log setpoint operations, add the “Event log” action to the
setpoint actions list. When a setpoint event happens, the
Event recorder logs all setpoint conditions that caused the
event and all setpoint actions performed in response to the
event. Logging actions themselves will not be recorded to the
Event log.
Configuring the Data Recorder
The Data recorder is programmable to record up to 16 data
parameters per record in each of 16 data log files. The list of
parameters to be recorded to a data log is configured
individually for each file.
Conventional Data Log Files
To create a new data log file or re-configure an existing file:
