Chapter 4 PAS Application Software
Configuring Recorders
86
Series PM175 Powermeters
Configuring Recorders
The PM175 is provided with a 1-Megabyte onboard non-
volatile memory for data, event and waveform recording.
Before using recorders, the device memory should be
partitioned between log files. The device memory is fully
configurable. You can define how much memory to allocate for
each log file. If you want to change the factory settings, follow
the guidelines in the section below.
Configuring Device Memory
The device memory can be partitioned for a total of 20 log
files:
Event log
16 Data logs
2 Waveform logs
EN50160 Power Quality log
Two of the data log files – Data log #9 and #10 – are
automatically configured in your meter for recording EN51060
compliance statistics data and harmonics survey data. You
cannot change the file records structure, but you can change
the amount of memory that will be allocated for recording data.

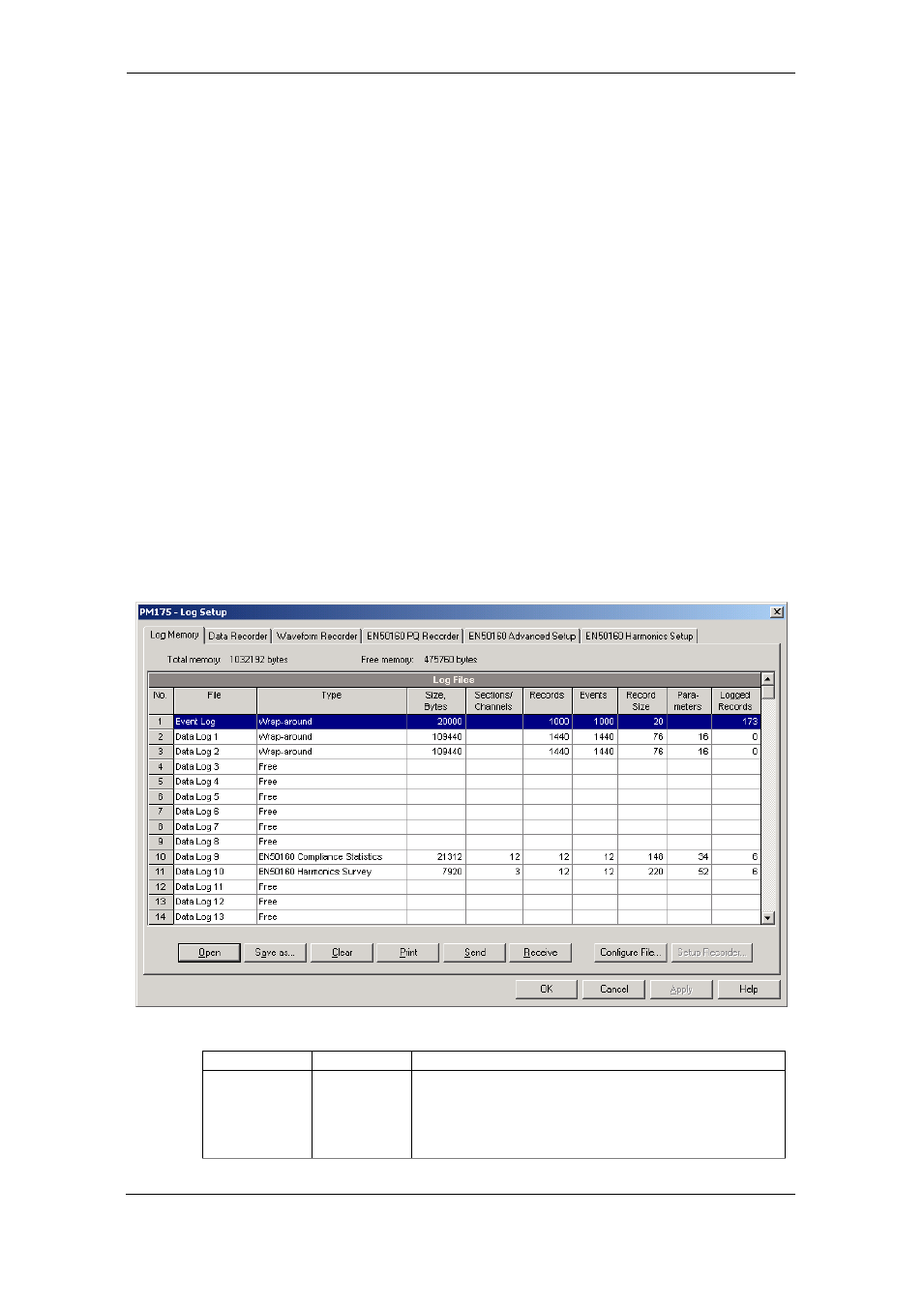

To view the present device memory settings, select
Memory/Log from the Meter Setup menu, and then click on the
Log Memory tab.
The following table lists available file options.
Option
Range
Description
Type
Wrap-around
Non-wrap
TOU Daily
Profile
Defines the file behavior when it is filled up.
Wrap-around: recording continues over the oldest records.
Non-wrap: recording is stopped until the file is cleared.
TOU Daily profile: TOU daily profile data log (only for Data log
#16).
