Chapter 4 PAS Application Software
Viewing Recorded Files
130
Series PM175 Powermeters

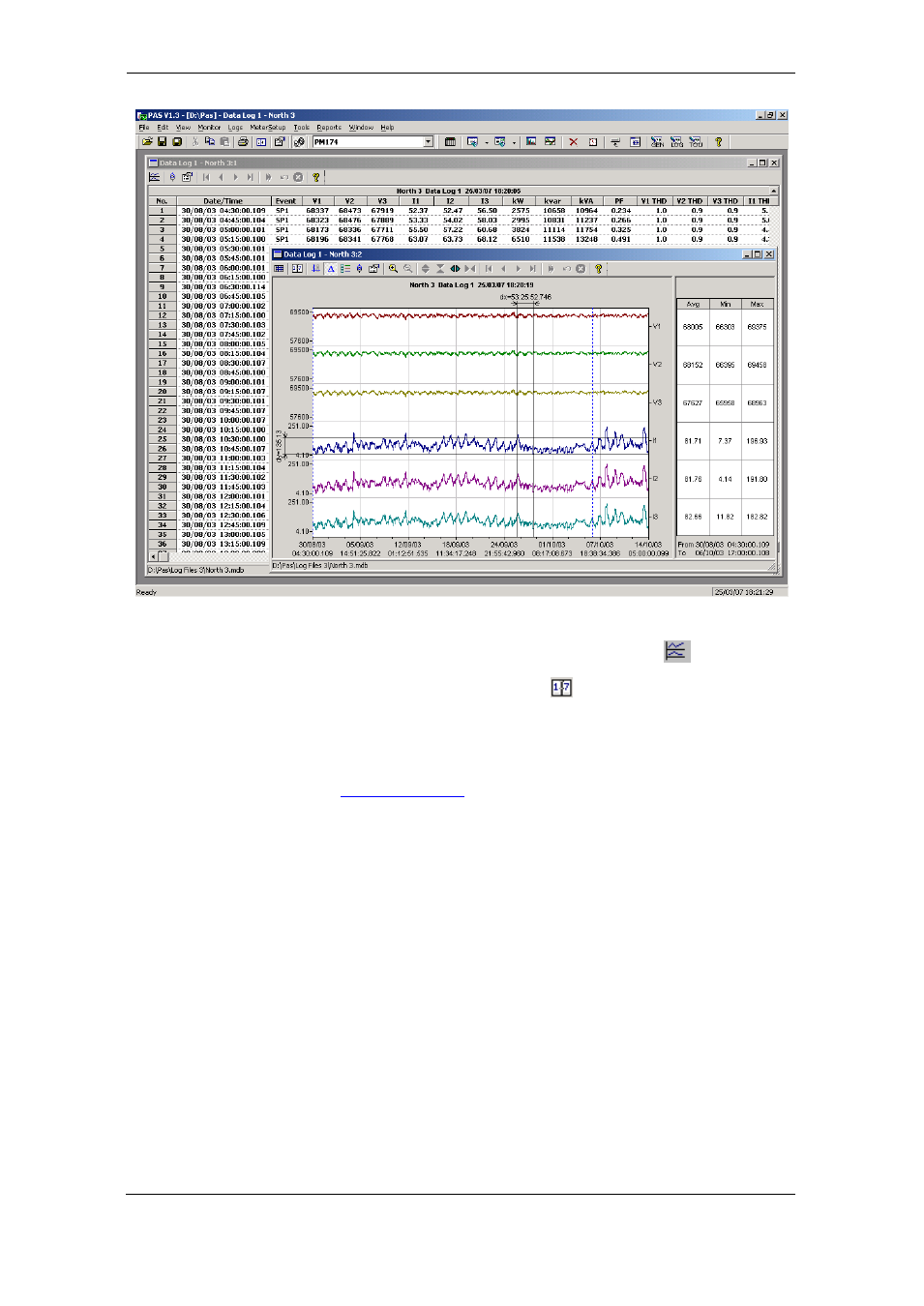

Viewing Data Trend
To view data in a graphical form, click on the Data Trend
button on the local toolbar. To change the time range for your
graph, click on the Time Range button
, and then select the
desired date and time range.
To select desired data channels for your trend, click on the
trend window with the right mouse button, select “Channels”,
check the channels you want displayed, and then click OK.
for information on customizing the
trend view and on the available graphics options.
Viewing Waveforms
When you open a new file, PAS shows you a waveform graph
with non-overlapped waveforms. Each waveform window has
a local toolbar from where you can open another window to
examine the waveform in a different view. When you move to
another waveform record, all waveform views are updated
simultaneously to reflect the changes.
