‎Chapter 4 PAS Application Software General Meter Setup
64 Series PM175 Powermeters
Basic Meter Setup
Before operating your meter, provide the device with basic
information about your electrical network.

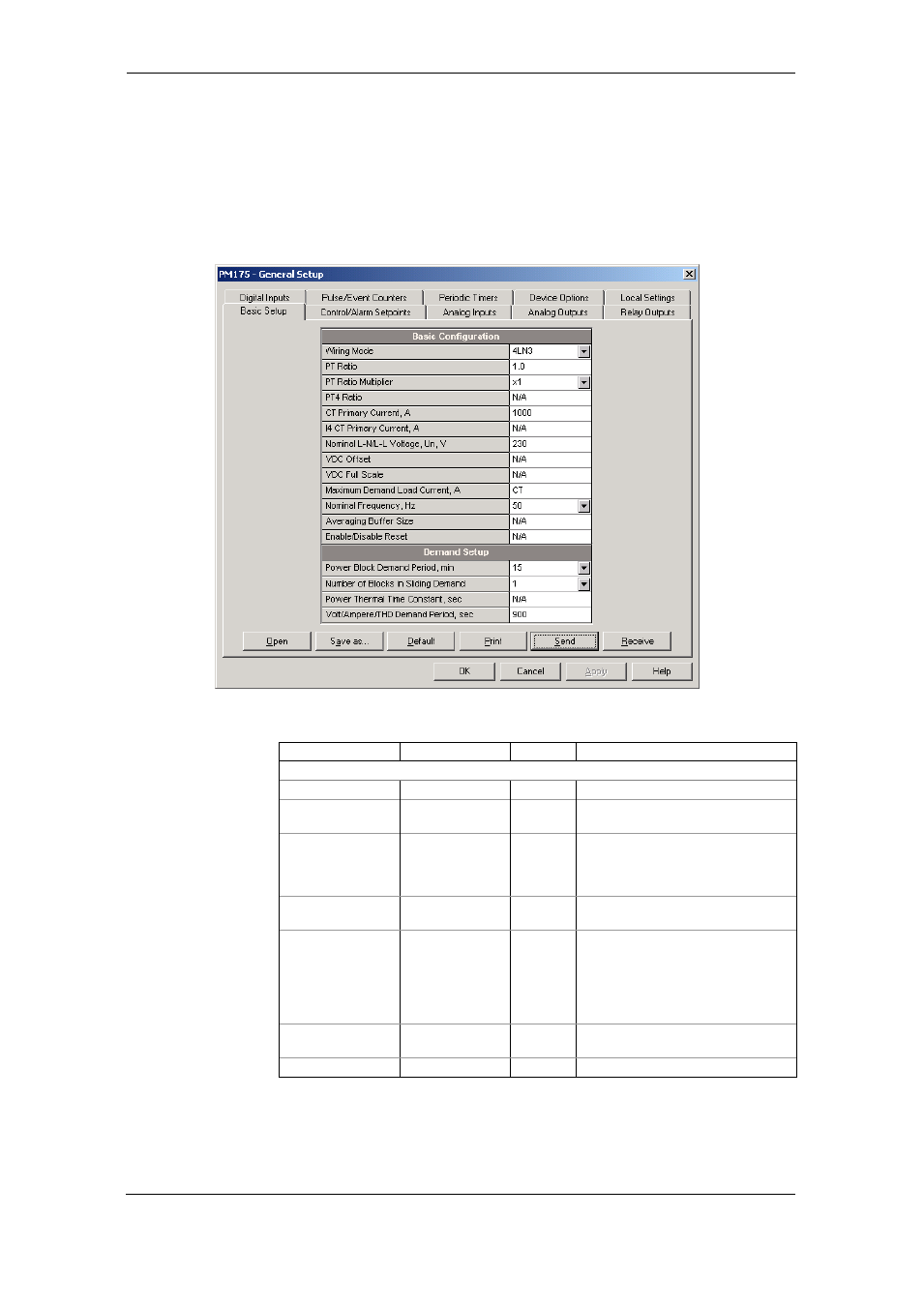

To enter the Setup dialog, select the device site from the list
box on the PAS toolbar, and then select General Setup from
the Meter Setup menu.
The following table lists available device configuration options.
Parameter Options Default Description
Basic Configuration
Wiring mode See Table below 4LN3 The wiring connection of the device
PT ratio 1 1.0-6500.0 1.0 The phase potential transformer’s
primary to secondary ratio
PT Ratio multiplier Ч1, Ч10 Ч1 PT Ratio multiplication factor. Used in
extra high voltage networks to
accommodate the PT ratio for 500 kV
and higher networks.
CT primary current 1-20,000 A 5 A The primary rating of the phase
current transformer
Nominal voltage 10-690 V 120 V The nominal secondary line-to-neutral
(in 4LN3, 3LN3 and 3BLN3 wiring
modes) or line-to-line (in 4LL3, 3LL3,
3BLL3, 3OP2, 3OP3 and 3DIR modes)
voltage. Used as a reference voltage
for the EN50160 evaluation.
Maximum demand
load current 0-20,000 A 0 The maximum demand load current
(0 = CT primary)
Nominal frequency 50,60 Hz 60 Hz The nominal line frequency
