Layer control panel, Layer control, Panel – MTS Acumen User Manual
Page 66

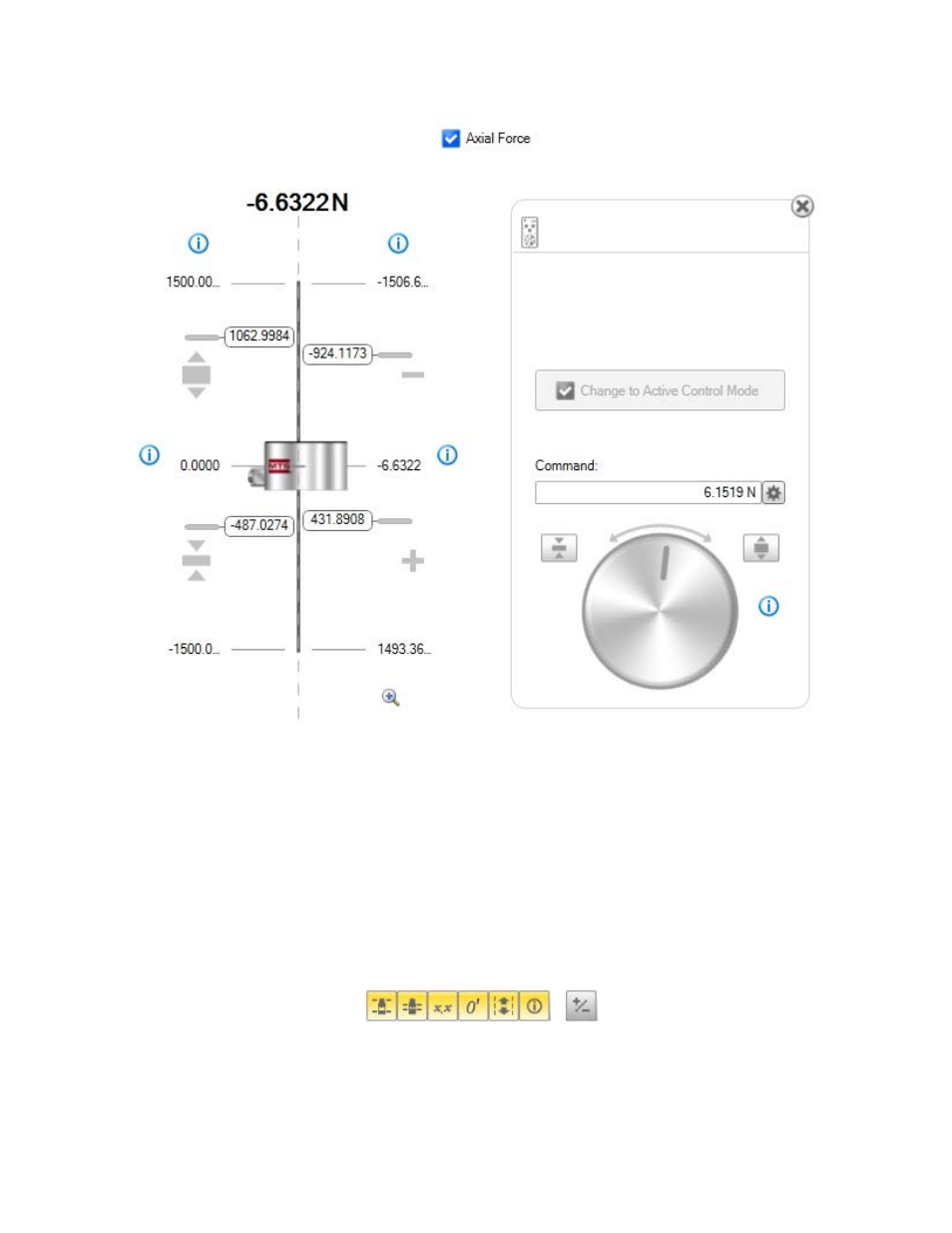

Axial Force with Control Panel
Layer Control Panel
The MTS Acumen system uses layers on the main window display of the frame so you can visualize the
logical architecture of your system. It highlights the physical components of your system and associates
them with the configuration changes you can make on the layered interface. The Layer Control panel has
six toggle buttons and a button to open the Add/Reorder Signal Views window. The panel is located in the
upper left corner of the main window, and it allows you to hide or show various aspects of the configuration
information and the context-sensitive help.
When a button is enabled, it will appear yellow. The following table describes each button within the Layer
Control panel.
Layer Control Panel
66 | MTS Acumen
™
