MTS Acumen User Manual
Page 125

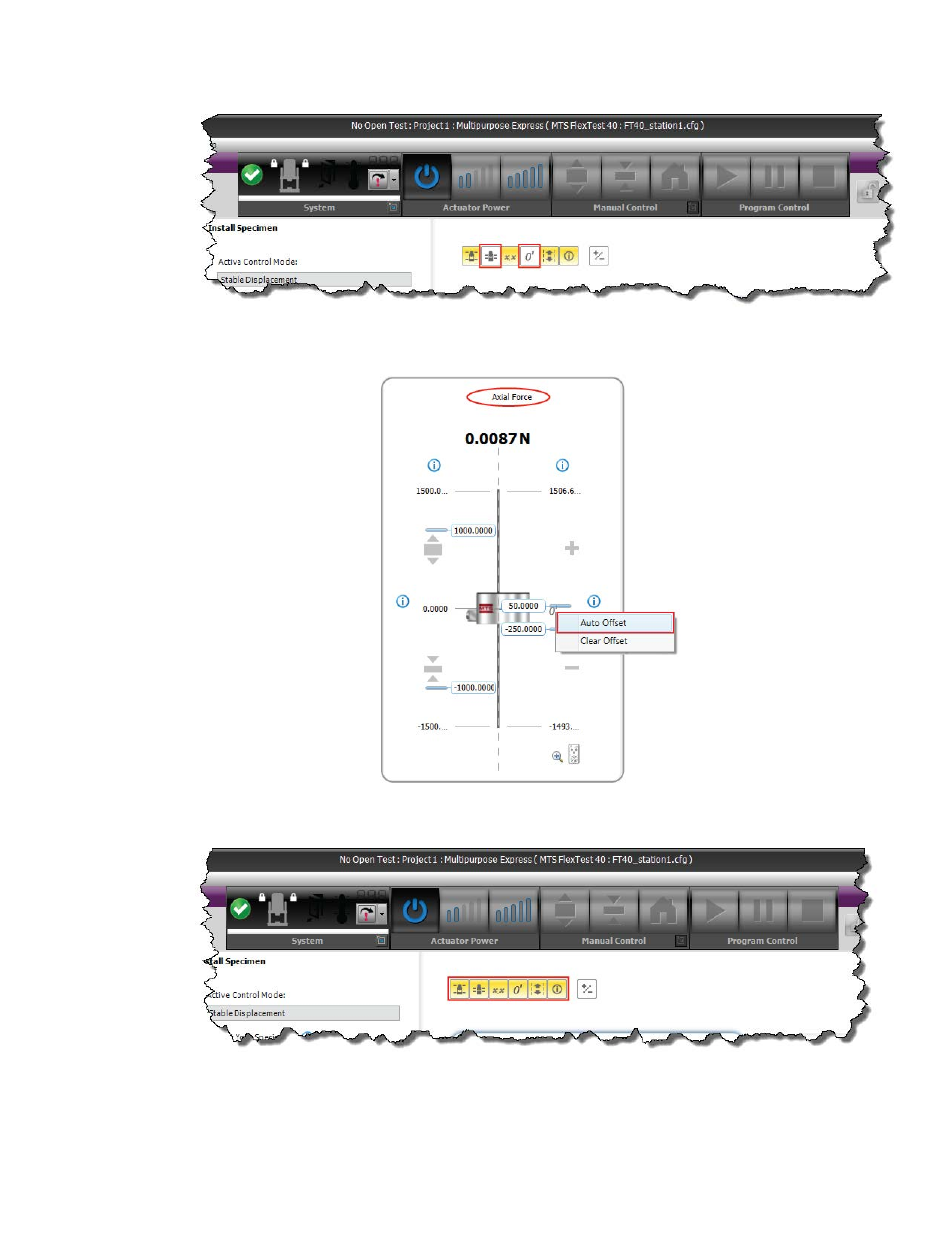

b) Right-click the offset value and select Auto Offset. This compensates for the weight of the fixture
(and the specimen in tests where grips are used).
c) In the Situational Awareness panel, show specimen limit sliders and the offset reference by making
all buttons in the Layer Control panel yellow.
2. Turn actuator power off.
MTS Acumen
™
| 125
Running the Example Spring Test
