Run the test – MTS Acumen User Manual
Page 131
a) Click Done.
b) Give the tuning set a name.
c) Click OK to save the set.
10. Review the Pretest Configuration.

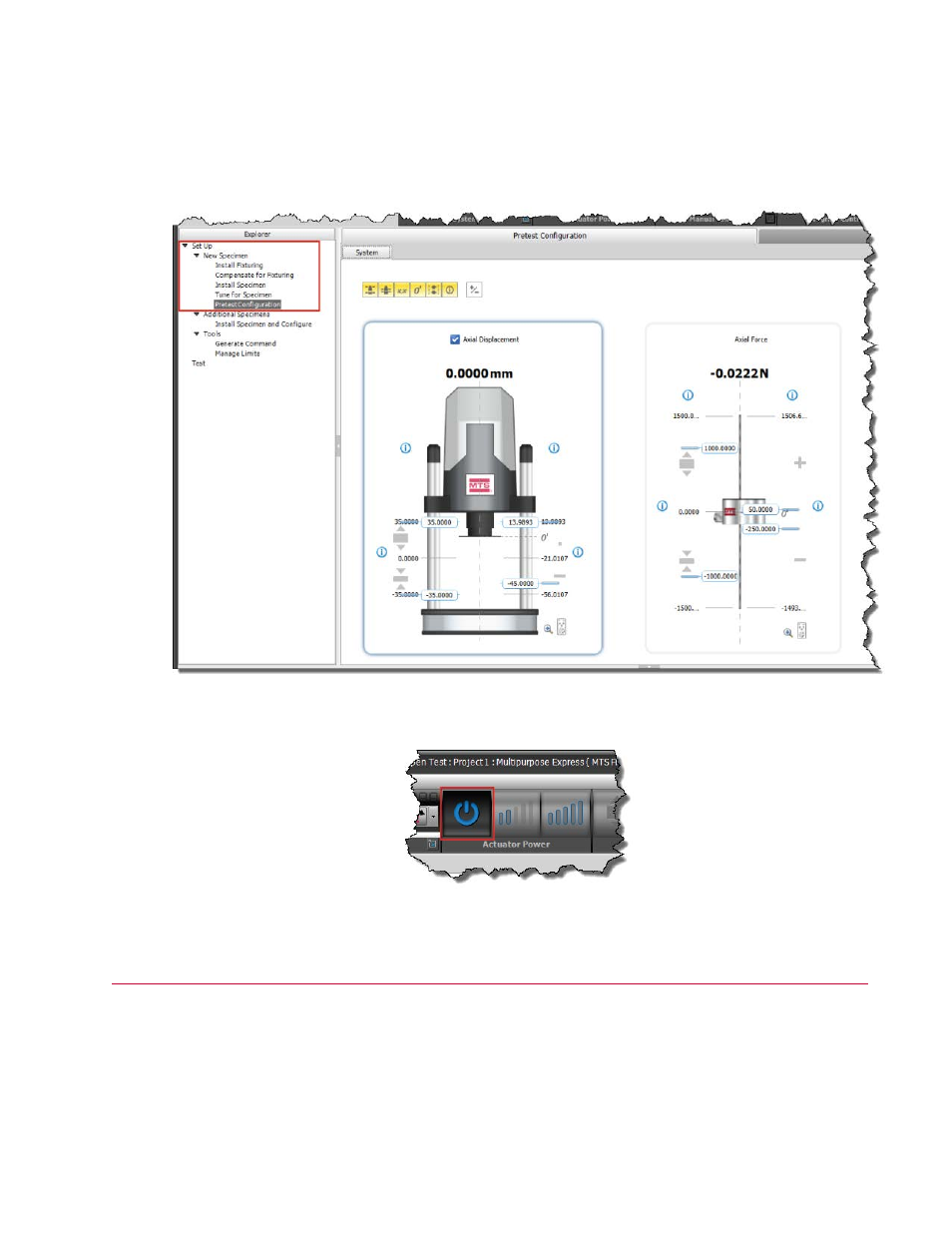

In the Explorer panel, select Pretest Configuration. Check to ensure that all values are as expected.
11. Turn off Actuator Power.
Run the Test
The example MTS Acumen Spring Test ramps from 0 to 150 N, and then cycles the spring between 100
and 200 N compression.
1. Create a new test.
MTS Acumen
™
| 131
Running the Example Spring Test
