MTS Acumen User Manual
Page 59

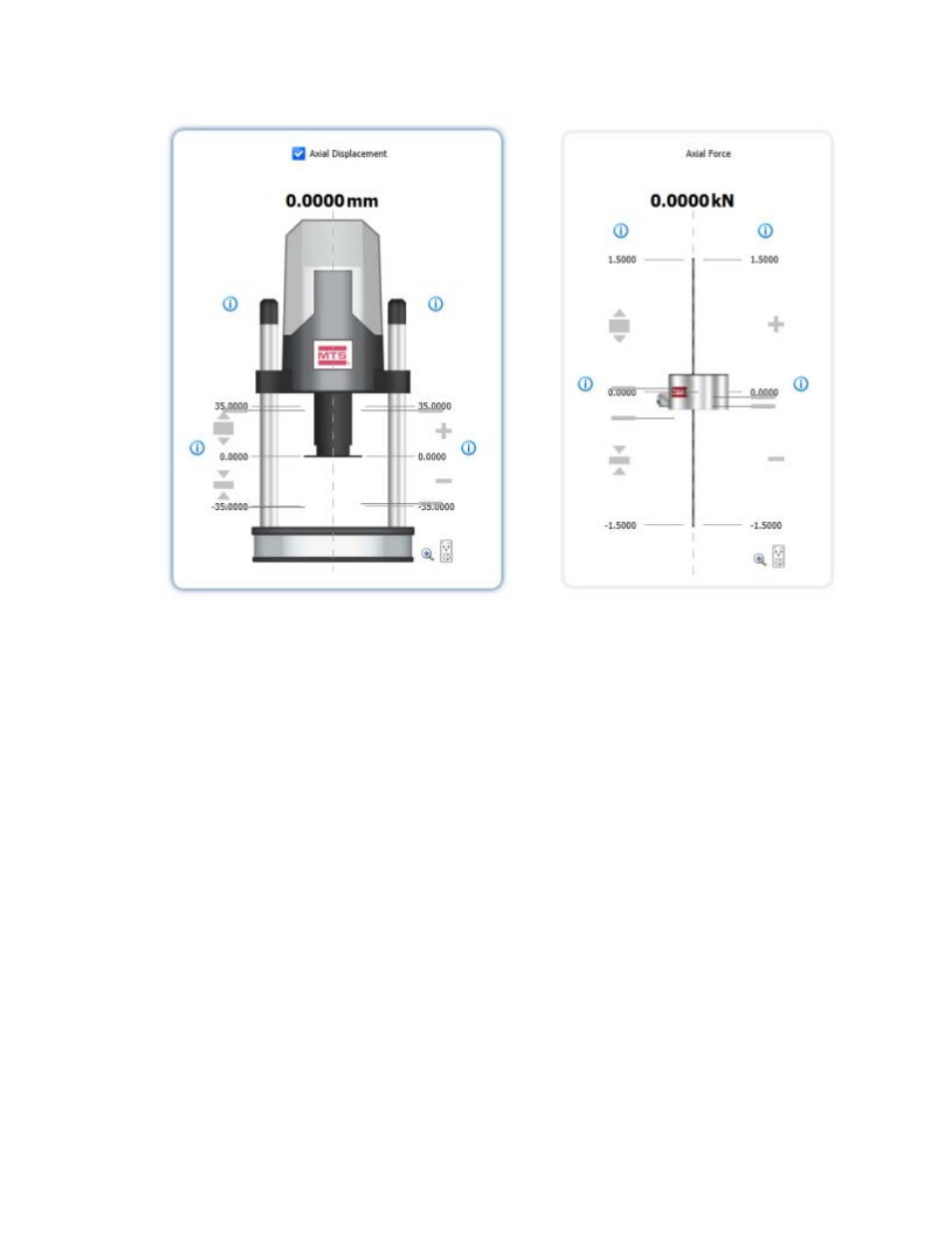

Situational Awareness Panel Showing Two Signals
Situational Awareness Panel Controls and Icons
On both sides of the frame diagram, there are small horizontal bars called thumb controls (see the following
figure). The thumb controls on the left side of the diagram modify the settings for the fixture limits (for more
information about setting fixture limits, see
(p. 156)). The thumb controls on the right
side of the diagram modify the settings for the specimen limits (for more information about setting specimen
limits, see
(p. 163)). If the thumb controls are not visible, click the Show the Fixture
Limit-Sliders and Show the Specimen-Limit Sliders buttons on the Layer Control panel (for more information
about the Layer Control panel, see
(p. 66)).
MTS Acumen
™
| 59
