Electrical installation
Wiring
EMC−compliant wiring
5
l
116 EDK82EV113 DE/EN/FR 11.0
M
3~
L < 500 mm L < 40 mm
1
2
3
4
5
6
7
8
9
0
PES
PES
PE
PE
PE
PES
8200vec066

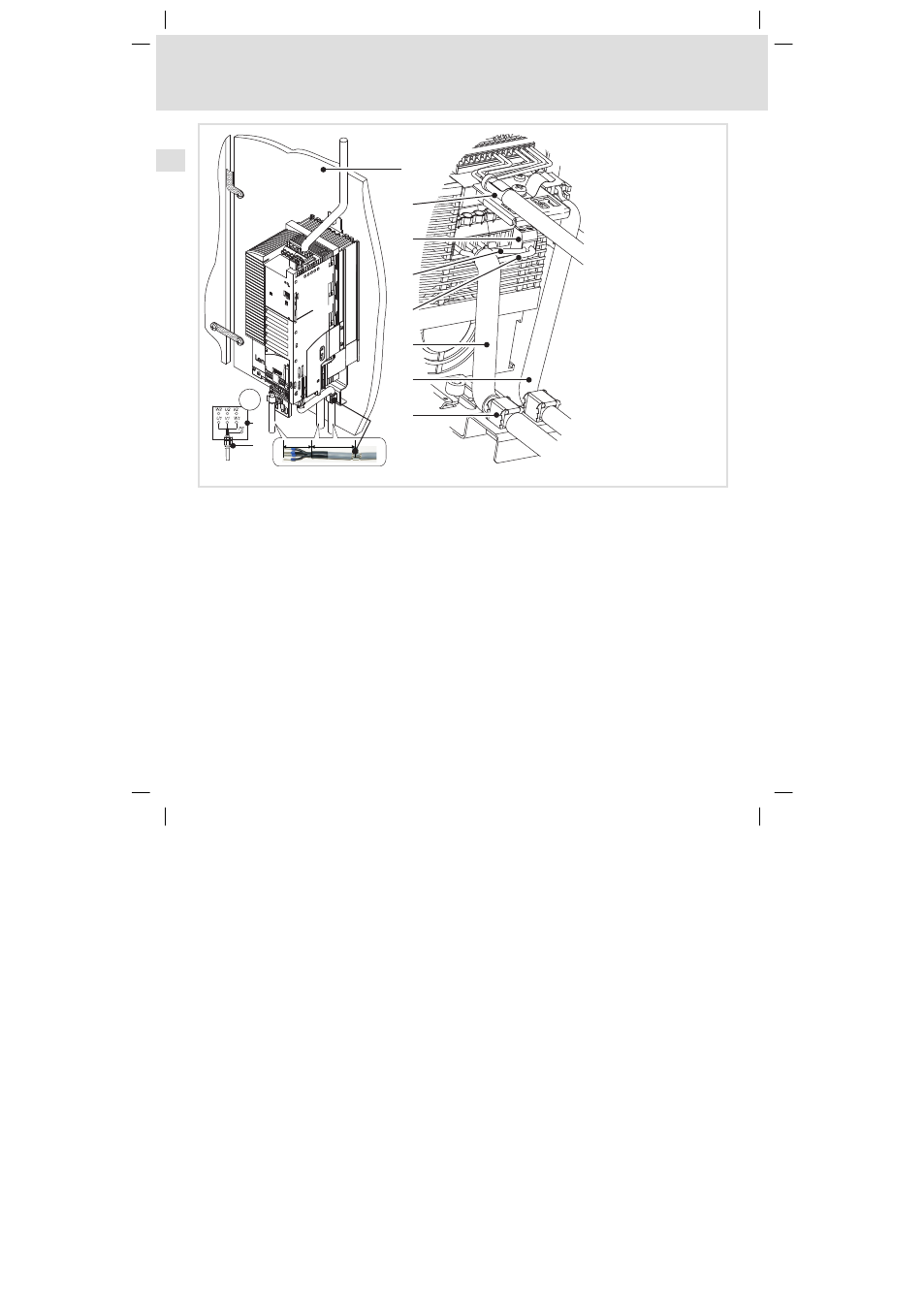

0 Mounting plate with electrically conductive surface
1 Control cable to the function module, connect the shielding to the EMC shield sheet (PES) with a surface as large
as possible
2 2−pole terminal for motor PE and motor shield
3 PE of the motor cable
4 Shield of the motor cable
5 Shielded motor cable, low−capacitance
(Core/core 1.5 mm
2 £ 75 pF/m; from 2.5 mm 2 £ 100 pF/m; core/shield £ 150 pF/m)
6 Shielded PTC cable or thermal contact cable
7 Connect the cable shields to the EMC shield sheet (PES) with a surface as large as possible. Use the supplied
shield clamps.
8 Star or delta connection as indicated on the motor nameplate
9 EMC cable connector (not included in the delivery package)
