Lenze E82EV 8200 - Manual (Page 109)

Mechanical installation

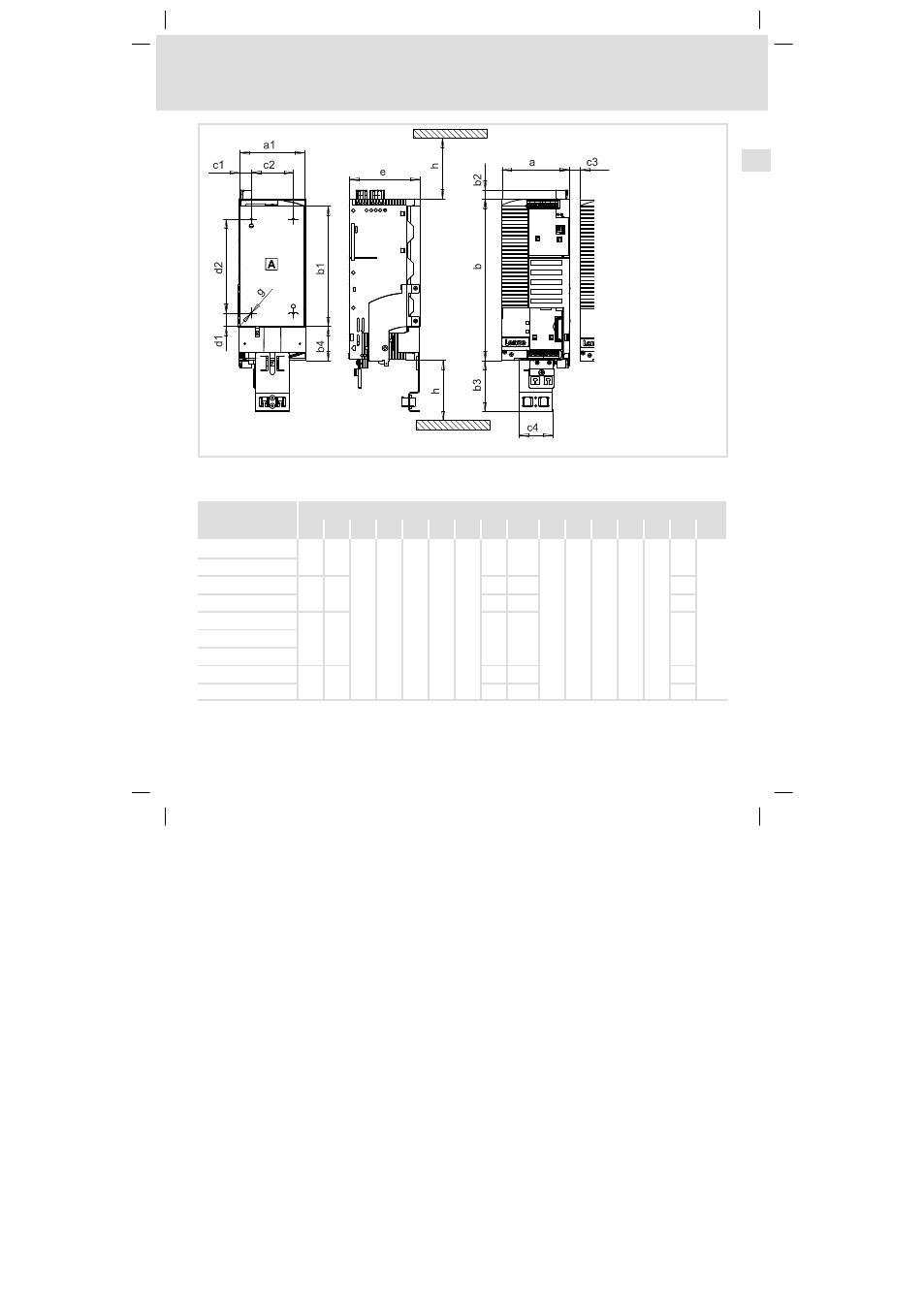

Mounting in cold−plate design
4
l
109 EDK82EV113 DE/EN/FR 11.0
E82CV006
0 Contact surface of the controller’s cooling plate to the cooler
Dimensions [mm]
8200 vector a a1 b b1 b2 b3 b4 c1 c2 c3 c4 d1 d2 e 1) g h
E82CV302K2C
100 96
240 180 14 77 50
16 62.5
³
3 50 20 140 106
M 4
³
100
E82CV402K2C
E82CV552K2C
125 121
20 84.5 M 4
E82CV752K2C 10 102 M 5
E82CV302K4C
100 96 16 62.5 M 4 E82CV402K4C
E82CV552K4C
E82CV752K4C
125 121
20 84.5 M 4
E82CV113K4C 10 102 M 5
1) If the function module is attached: observe mounting clearance and cable bending radius. The terminals of
function modules in PT design protrude above the housing by 14 mm.
