5 Installation
5.2 EtherNet/IP connection
20
Lenze · Decentralised frequency inverter 8400 protec (EtherNet/IP™ option) · Communication Manual · DMS 3.0 EN · 07/2014 · TD17
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.2.1.2 Ethernet cable specification

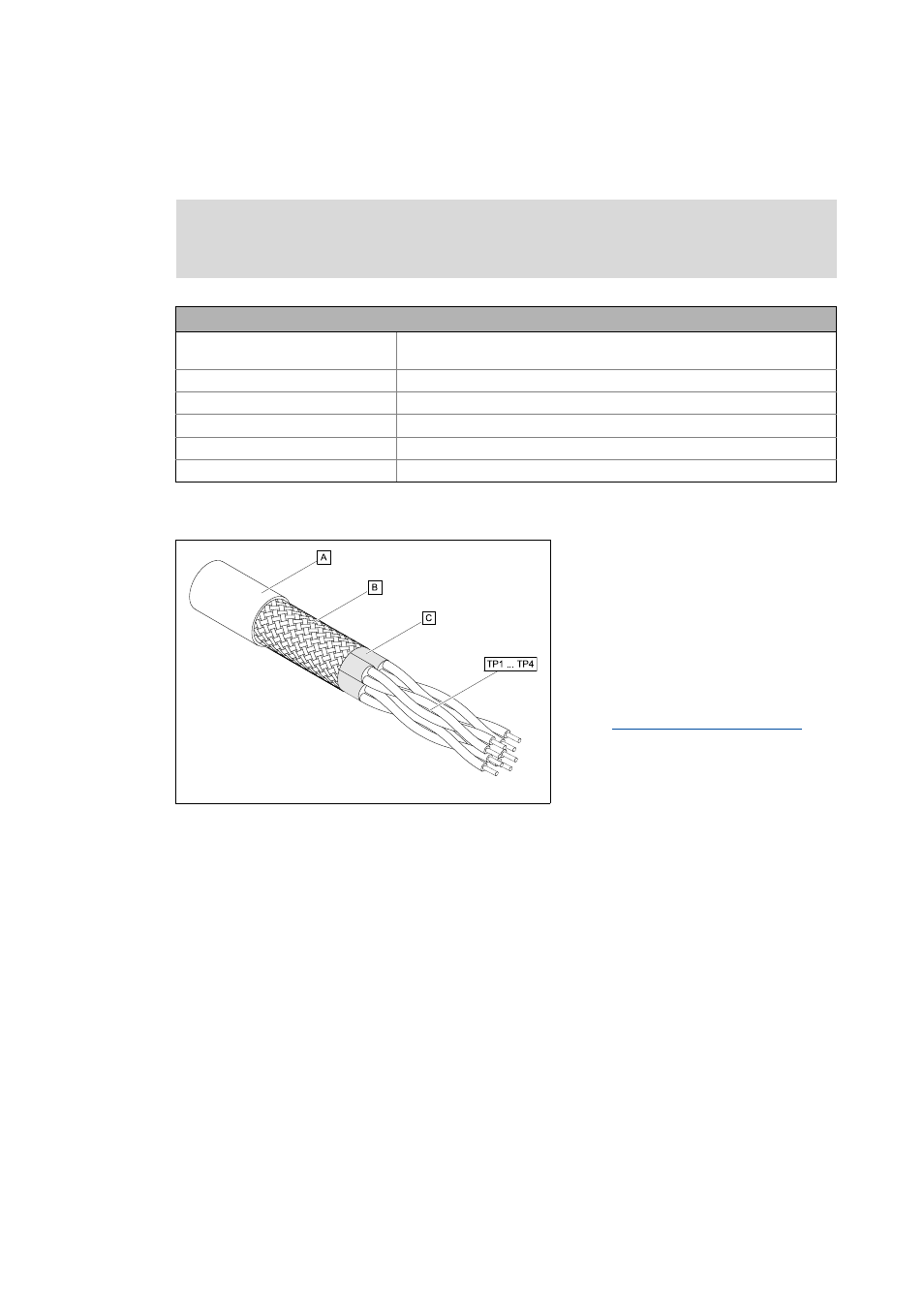

Structure of the Ethernet cable
[5-6] Structure of the Ethernet cable (S/FTP, CAT 5e)

Note!
Only use cables that meet the listed specifications.
Ethernet cable specification
Ethernet standard
Standard Ethernet (in accordance with IEEE 802.3), 100Base-TX (Fast
Ethernet)
Cable type S/FTP (Screened Foiled Twisted Pair, ISO/IEC 11801 or EN 50173), CAT 5e
Damping 23.2 dB (at 100 MHz and per 100 m)
Crosstalk damping 24 dB (at 100 MHz and per 100 m)
Return loss 10 dB (per 100 m)
Surge impedance 100 
E94YCEP016
A Cable insulation
B Braid
C Foil shield
TP1
...
TP4
Twisted core pairs 1 ... 4
 Colour code of the Ethernet cable
( 21)
