Lenze · 8400 StateLine · Operating instructions · from Firmware V06.00 · DMS 1.2 EN · 12/2012 · TD05
9

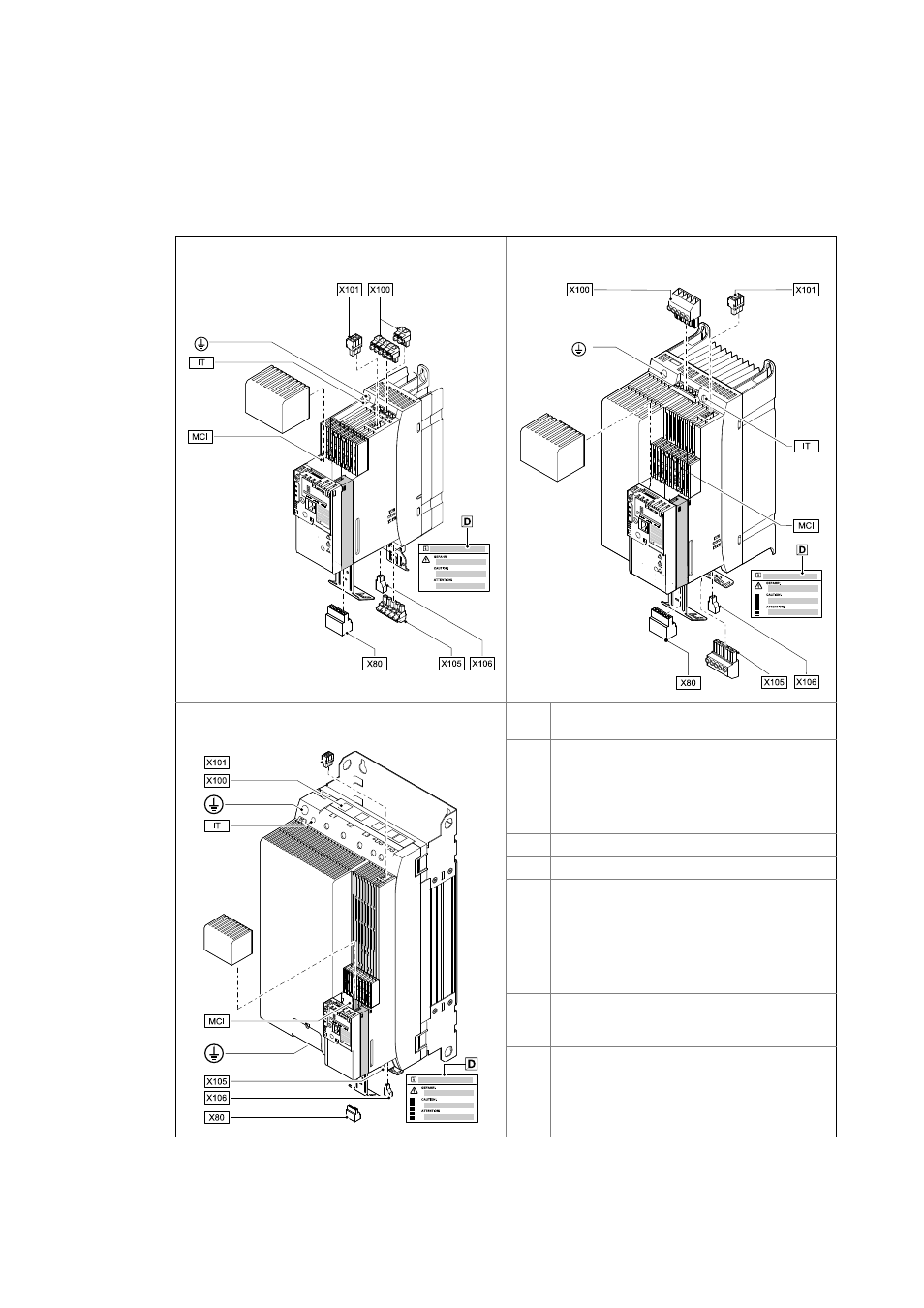

3 Overview of terminals
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3 Overview of terminals
Power terminals
Power range 0.25 ... 3 kW
(Device sizes 1 ... 3)
Power range 3 ... 22 kW
(Device sizes 4 ... 6)
Power range 30 ... 45 kW
(Device size 7)
X80 Terminal strip for drive-based safety "safe torque
off (STO)" (option)
X100 Mains/DC-bus voltage for 400 V devices
X101 Relay output
• AC 250 V, 3 A
• DC 24V, 2A
• DC 240 V, 0.16 A
X105 Motor/external brake resistor
X106 Motor temperature monitoring
IT Contact screws for interference suppression (on
the supply side and on the on the motor side)
• Before using the controller in the IT system,
loose both contact screws.
• Please observe the notes in the hardware
manual and in mounting instructions of the
controller and filters.
MCI Slot for communication module
• MCI = abbreviation for "Module
Communication Interface"
 Sticker with warning
