Commissioning

6.2

Quick commissioning with the keypad

Lenze · 8400 StateLine · Operating instructions · from Firmware V06.00 · DMS 1.2 EN · 12/2012 · TD05

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

4. Load Lenze setting to controller.

This step is recommended to get a defined device configuration. All parameter settings in the

controller are reset to the Lenze setting.
The Lenze setting can only be loaded if the controller is inhibited!

Now the Lenze setting is being loaded and then the controller will be restarted.

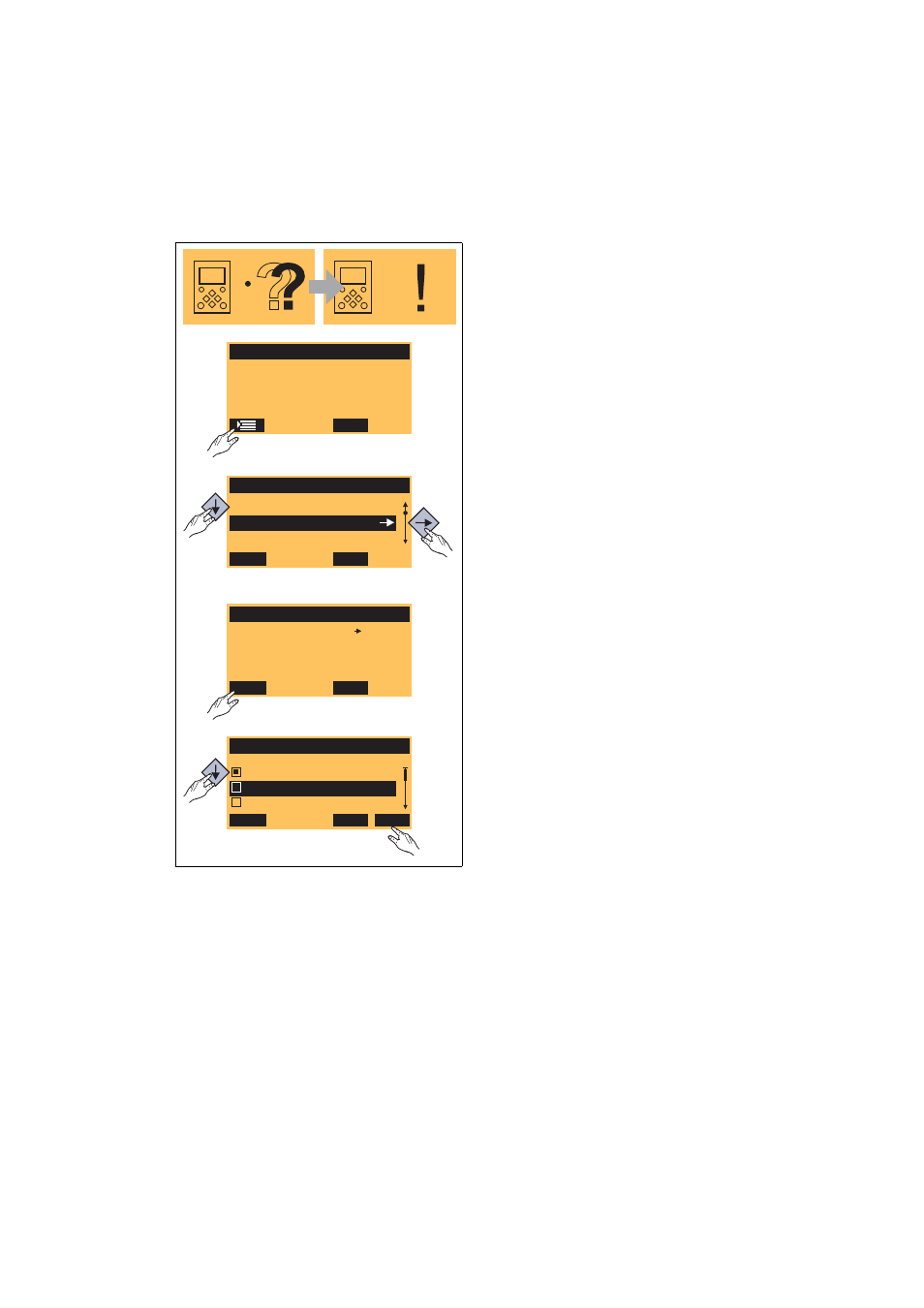

After attaching the keypad or switching on the

controller with keypad attached, the connection

between keypad and controller is established.

The connection has been established when the

code C00051 appears in the display.

• Then press the function key



to change to the

main menu.

• Use the / navigation keys to select the "Code

list" entry.

• Change to this level by pressing the navigation

key .

• The code list contains all parameters of the

controller.

• The "Load Lenze setting" device command

(C00002/001) is the first parameter in the code

list.

• Use the



function key to switch over to the

editing mode.

• Use the / navigation keys to select the

"1 On / Start" entry.

• Use the



function key to accept the selection

and to leave the editing mode.

Actual speed

C00051

0 rpm

CINH

Par1 8400 StateLine C

SAVE

Code list

Go To Param

USER - Menu

CINH

Load Lenze setting

C00002/001

Off / Finished

CINH

EDIT

Load Lenze setting

ESC

1 On / Start

4 Action cancelled

0 Off / Finished

CINH

C00002/001
